Edelbrock Intake Manifold Super Victor For Raised Port 23-Degree Cylinder Heads Small Block Chevy

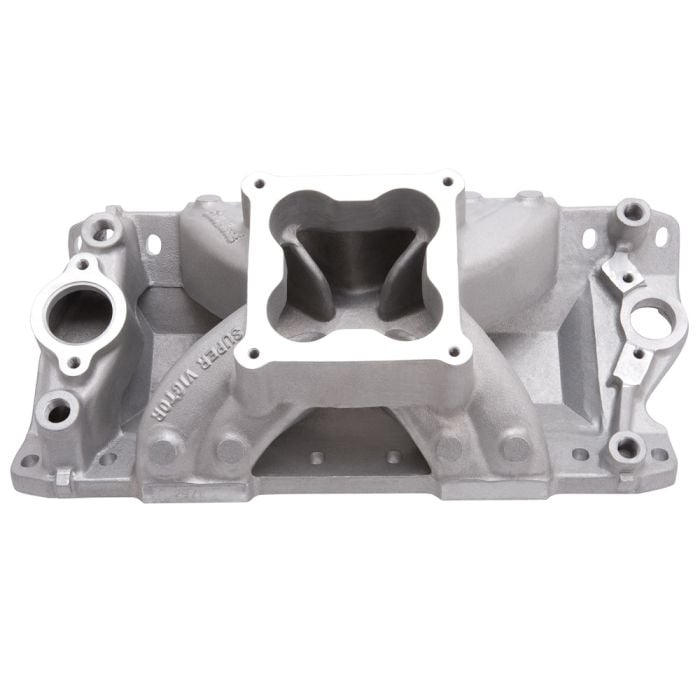

Edelbrock designed this Super Victor Intake Manifold (2971) for Small Block Chevy Engines with Raised Port 23-Degree Cylinder Heads and 4500 Series carburetors. Choosing a high-performance intake manifold for your race application is easy when the Super Victor's reputation and popularity precede itself.

Features and Benefits:
- Excellent Top-End Horsepower for Race Applications
- Single-Plane Design Suitable for Midrange RPM
- Made of Aluminum in a Satin Finish
- Large Runner with a 3.20 Square-Inch Cross-Section
- Ideal for Alcohol Usage
- Proudly Made in the USA!

It's no coincidence that the Super Victor can be seen on oval tracks, in drag racing, and even on NASCAR engines. Edelbrock delivers maximum horsepower and torque for better 60 ft. times in drag racing and better throttle response off the corners in oval track racing.

Specifications:
- Center Maximum Height: 6.770 in
- CNC Ported: No
- Front Maximum Height: 6.770 in
- Rear Maximum Height: 6.770 in

The Super Victor features a single-plane design for race engines that operate at high RPM. The Intake Manifold will supply fresh air to the cylinders for reliable performance and exceptional throttle response.

Tech Tip: Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.

Additional Notes:
- No provisions for exhaust heated chokes or EGR.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant P/N: EDL1076. Do not use end seals gaskets.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
- To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
