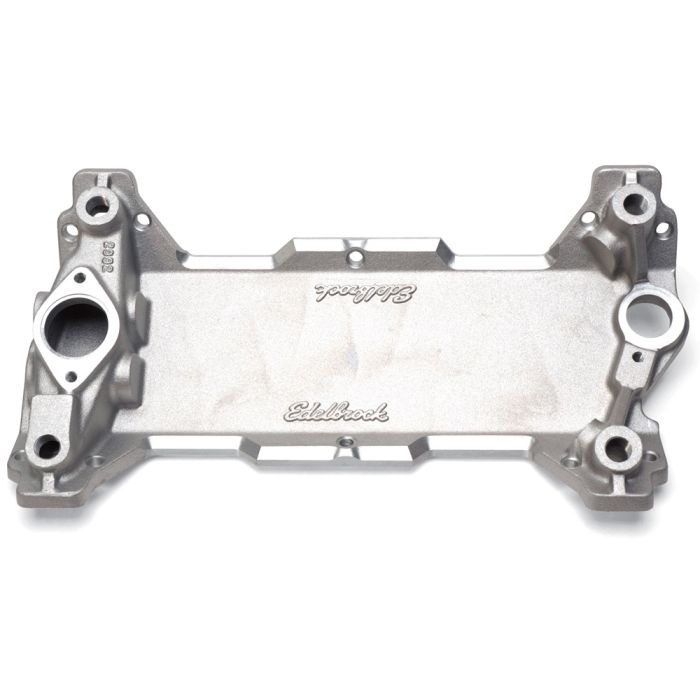

Edelbrock Intake Manifold Valley Base Plate Victor 18-Degree Small Block Chevy

Manufactured by Edelbrock, this Victor Intake Manifold Valley Base Plate (2992) fits conventional 18-degree Small Block Chevy heads on standard deck engine blocks. This part serves as the bedding plate portion of a two-piece manifold system, typically consisting of a valley plate and spider.

"Spider assembly" is a term coined by racers that refers to the intake manifold runners while the valley plate assembly simply refers to the bottom section of the intake.

Features and Benefits:
- Made of Aluminum in a Satin Finish
- Single-Plane Design
- 18-Degree Spider Base
- Bedding Plate Portion of Two-Piece Manifold System
- Use with Conventional 18-Degree SBC Heads on Standard Deck Engine Block

This 18-degree Spider Base is made of high-quality aluminum with a satin finish and single-plane design.

Specifications:
- Center Maximum Height: 0.010 Inches
- CNC Ported: No
- Front Maximum Height: 0.010 Inches
- Rear Maximum Height: 0.010 Inches

Tech Tip: This plate is more compatible with Edelbrock's older 18-degree intakes such as P/N: EDL2955 and P/N: EDL2958 and will require less work for a proper fit.
