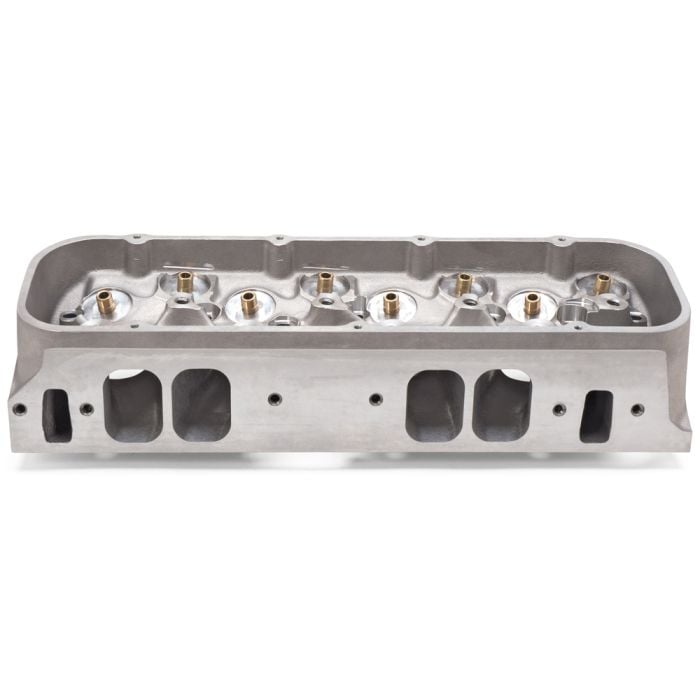

Edelbrock/Musi Victor Cylinder Head 24° Bare Big Block V8 Chevy

Vastly improve the exhaust flow and power of your Big Block V8 Chevy engine via this Edelbrock cylinder head (61419). This aluminum cylinder head is designed with 367cc flow on the left-hand side while the right-hand side is 377cc. Impressive in size, this oval port design and their 3/4” raised height makes for a noticeable performance improvement. By using an extra thick deck and extra material in the spring pockets, it boasts a heavy-duty casting as well. This makes it compatible with high-lift cam and heavy spring combinations.

Features and Benefits:
- Aluminum, CNC-ported cylinder head
- Exhaust port exits raised 3/4”
- Large oval port designs
- 367cc flow left-hand side, 377cc right-hand side
- Greatly improves exhaust flow & power
- Extra thick deck & extra material in spring pockets
- Works w/ high-lift cam & heavy spring combinations
- Manley dual-spring valve springs
- Titanium retainers good for up to 0.88" lift
- Includes hardened steel guide plates

Vehicle Fitment:
- 1960-1987 Chevy C10
- For models with a Big Block V8 Chevy engine ONLY
*Engine must have a minimum of a 4.47” diameter bore

Specifications:
- Combustion chamber volume: 119cc
- Deck height: 10-1/5”
- Deck thickness: 9/16”
- Intake runner volume: 377cc
- Push rod diameter: 3/8”
- Rocker stud diameter: 7/16”
- Valve angle: 24°

Please Note: Bare heads will have valve guides and seats installed but will require final sizing and a valve job to match the valves you will be using.
