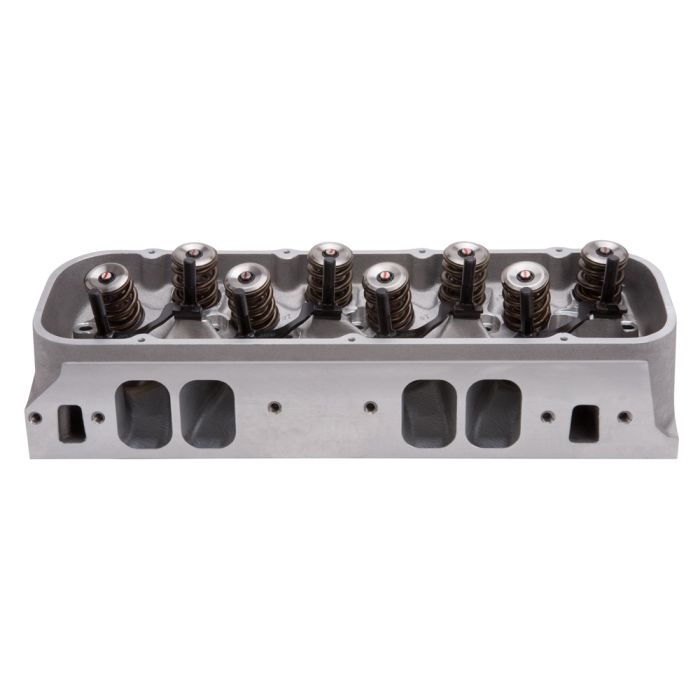

Edelbrock/Musi Victor Cylinder Head 24° Complete Big Block V8 Chevy 1965+

For an immense boost to exhaust flow and power, get your 1965+ Big Block Chevy engine this cylinder head (61409). Edelbrock and Musi teamed up to give this cylinder head a large oval port design and a raised 3/4” height. Not only does this lead to incredible power, but it also builds into even better flow by using a 367cc flow on the left side and 377cc on the right. It has a heavy-duty casting too, courtesy of the extra thick deck and extra material in the spring pockets. Together, it lets it work with high-lift cam and heavy spring combos alike.

Features and Benefits:
- Aluminum, CNC-ported cylinder head
- Exhaust port exits raised 3/4”
- Large oval port designs
- 367cc flow left-hand side, 377cc right-hand side
- Greatly improves exhaust flow & power
- Extra thick deck & extra material in spring pockets
- Works w/ high-lift cam & heavy spring combinations
- Manley dual-spring valve springs
- Titanium retainers good for up to 0.88" lift
- Includes hardened steel guide plates

Vehicle Fitment:
- 1965-1987 Chevy C10
- 1988-1998 Chevy/GMC C/K
- For models with a Big Block V8 Chevy engine ONLY
*Engine must have a minimum of a 4.47” diameter bore

Specifications:
- Combustion chamber volume: 119cc
- Deck height: 10-1/5”
- Deck thickness: 9/16”
- Intake runner volume: 377cc
- Push rod diameter: 3/8”
- Rocker stud diameter: 7/16”
- Valve angle: 24°
