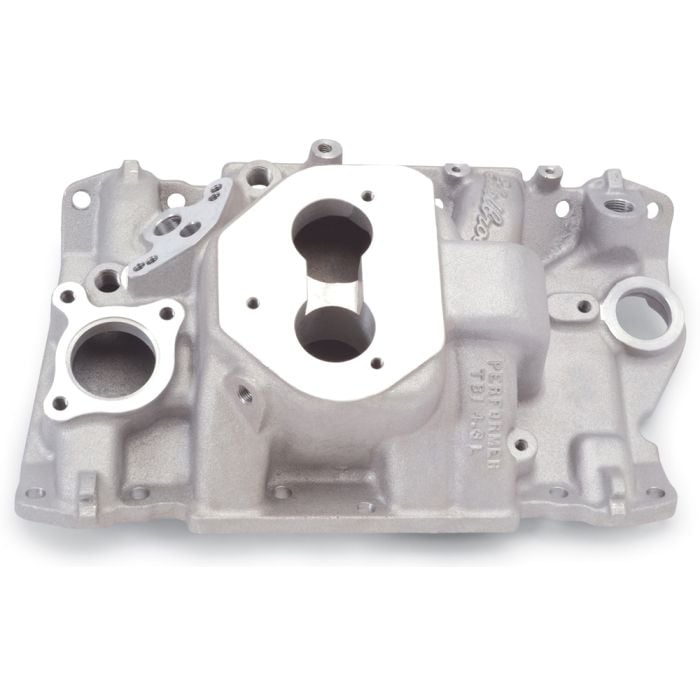

Edelbrock Performer 4.3L TBI Chevrolet 90-Degree V6 Intake Manifold with EGR

Edelbrock Part # 3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip.

-1988 Chevrolet C1500-1988 Chevrolet C2500-1988 GMC C1500-1988 GMC C2500-1989 Chevrolet C1500-1989 Chevrolet C2500-1989 GMC C1500-1989 GMC C2500-1990 Chevrolet C1500-1990 Chevrolet C2500-1990 GMC C1500-1990 GMC C2500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 GMC C1500-1991 GMC C2500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 GMC C1500-1992 GMC C2500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 GMC C1500-1993 GMC C2500-1994 Chevrolet C1500-1994 Chevrolet C2500-1994 GMC C1500-1994 GMC C2500

Installation Notes

    Use stock Throttle Body Injection unit.
    Recommended intake gasket: GM # 12510908
    Manifold height: A-3.93", B-5.15"
    Carb pad height: 4.54"
    Port exit dimensions: 1.10" x 1.92"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    4.540 in
CNC Ported    No
Front Maximum Height    3.930 in
Material    Aluminum
Rear Maximum Height    5.150 in
Single Or Dual Plane Type    Dual Plane
