Edelbrock Performer 5.8L EFI Ford Truck Intake Manifold 1988-1996 with EGR


Edelbrock Performer 5.8L EFI Ford Truck Intake Manifold 1988-1996 with EGR

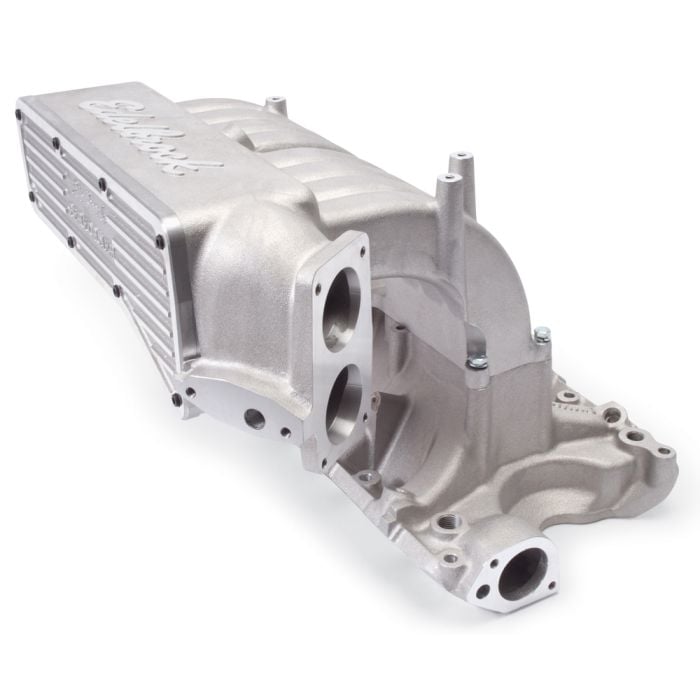

Edelbrock Part # 3881 Performer 5.8L EFI intake manifold is designed for 1988-96 Ford 5.8L, EFI, truck engines, the modular design of this manifold incorporates the latest air flow technology for maximum torque gains in the mid-range. This manifold made 34 ft-lbs. more torque than stock on our test engine. Other features include: broad power range from idle to 5500 rpm; removable plenum cover that allows access to runners; base manifold is CNC port matched to upper manifold for maximum power; and accepts all stock hardware. The upper is powder-coated light titanium gray, base is satin. Use with stock or stock replacement twin throttle body. Will not fit vans.

-1988 Ford Bronco-1988 Ford F-150-1988 Ford F-250-1988 Ford F-350-1989 Ford Bronco-1989 Ford F-150-1989 Ford F-250-1989 Ford F-350-1990 Ford Bronco-1990 Ford F-150-1990 Ford F-250-1990 Ford F-350-1991 Ford Bronco-1991 Ford F-150-1991 Ford F-250-1991 Ford F-350-1992 Ford Bronco-1992 Ford F-150-1992 Ford F-250-1992 Ford F-350-1993 Ford Bronco-1993 Ford F-150-1993 Ford F-250-1993 Ford F-350-1994 Ford Bronco-1994 Ford F-150-1994 Ford F-250-1994 Ford F-350-1995 Ford Bronco-1995 Ford F-150-1995 Ford F-250-1995 Ford F-350-1996 Ford F-150-1996 Ford F-250-1996 Ford F-350

Installation Notes

    For Trucks under 8600 GVW
    Recommended intake gasket: Edelbrock # 7220
    Port exit dimensions: 1.04" x 1.85"
    Overall height: 13.25"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    13.250 in
CNC Ported    No
Front Maximum Height    13.250 in
Material    Aluminum
Rear Maximum Height    13.250 in
Single Or Dual Plane Type    Single Plane

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following F-150 years:
