Edelbrock Performer-Plus Camshaft for Small Block Chevy 305-350 TBI and LG4 V8

Edelbrock:
3702
$210.95

Edelbrock Performer-Plus Camshaft for Small Block Chevy 305-350 TBI and LG4 V8

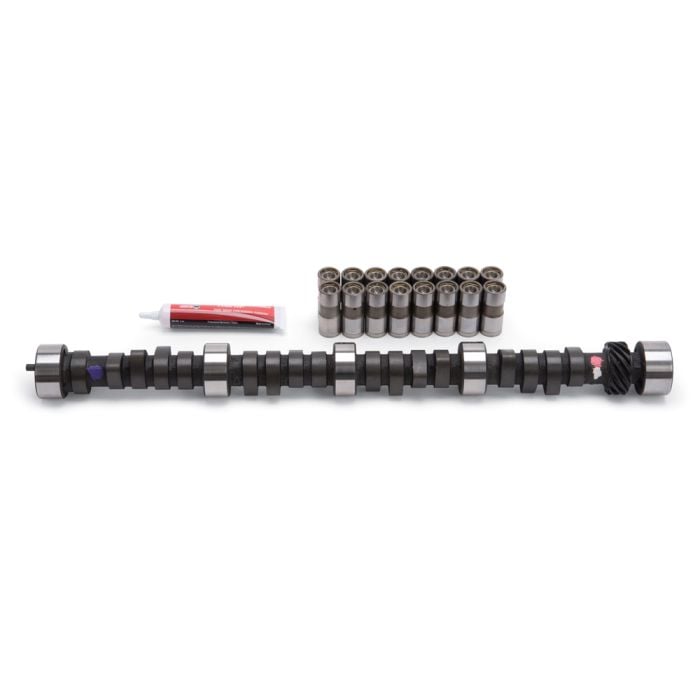

Edelbrock Part # 3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.Camshaft Specifications: • Duration @ .050 Intake: 194 degrees • Duration @ .050 Exhaust: 214 degrees • Lift @ Valve Intake: .398” • Lift @ Valve Exhaust: .442” • Lobe Separation: 112 Degrees • Intake Centerline: 107 Degrees • Idle Vacuum @ 1000 RPM’s: 16”

-1988 Chevrolet C1500-1988 Chevrolet C2500-1988 Chevrolet C3500-1988 GMC C1500-1988 GMC C2500-1988 GMC C3500-1989 Chevrolet C1500-1989 Chevrolet C2500-1989 Chevrolet C3500-1989 GMC C1500-1989 GMC C2500-1989 GMC C3500-1990 Chevrolet C1500-1990 Chevrolet C2500-1990 Chevrolet C3500-1990 GMC C1500-1990 GMC C2500-1990 GMC C3500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 Chevrolet C3500-1991 GMC C1500-1991 GMC C2500-1991 GMC C3500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 Chevrolet C3500-1992 GMC C1500-1992 GMC C2500-1992 GMC C3500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 Chevrolet C3500-1993 GMC C1500-1993 GMC C2500-1993 GMC C3500-1994 Chevrolet C1500-1994 Chevrolet C2500-1994 Chevrolet C3500-1994 GMC C1500-1994 GMC C2500-1994 GMC C3500-1995 Chevrolet C1500-1995 Chevrolet C2500-1995 Chevrolet C3500-1995 GMC C1500-1995 GMC C2500-1995 GMC C3500

Installation Notes

    Recommended Valve Springs for OEM heads: Edelbrock part # 5802 non-rotator/# 5902 Rotator
    50-state legal E.O. #D-215-19 for 1957-86 small-block Chevrolet.
    In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs.
    Oil/additive must contain Zinc designed for use with flat tappet camshafts.
    Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
    Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Advertised Exhaust Duration    264 deg
Advertised Intake Duration    244 deg
Cam Type    Cast
Exhaust Duration at .050 inch Lift    214 deg
Exhaust Valve Lift    0.442 in
Intake Valve Lift    0.398 in
Lifter Type    Hydraulic
Lobe Separation    112 deg
Intake Duration .050 Inch Lift    194 deg
Lifter Materials    Hardened Steel
Computer Controlled Compatible    Yes

California Residents: Proposition 65 Warning

This item is 50-state legal (CARB E.O. Number D-215-19)

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
