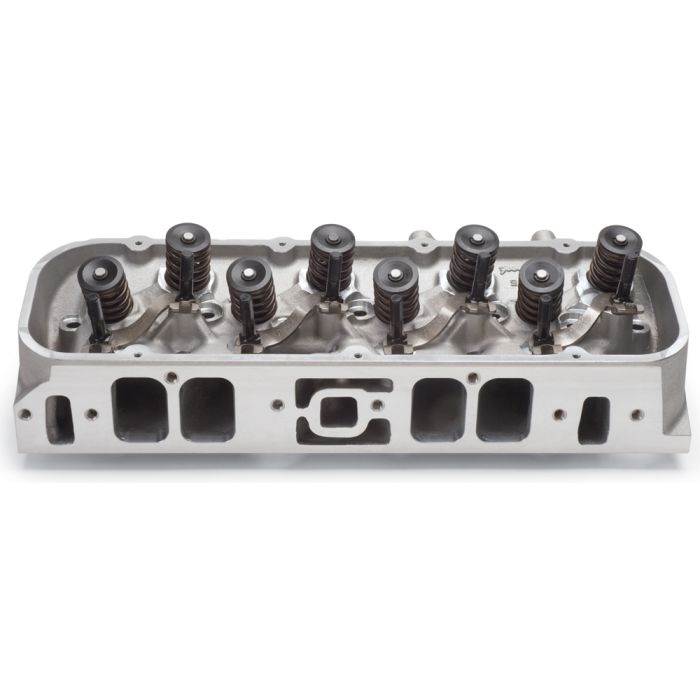

Edelbrock Performer RPM Big Block Chevy Rectangular Port Cylinder Head Flat Tappet Springs Polished Complete
Edelbrock Performer RPM Big Block Chevy Rectangular Port Cylinder Head Flat Tappet Springs Polished Complete
The Edelbrock #60559 Performer RPM Rectangle Port cylinder heads are designed for Big-Block Chevy applications. The Edelbrock #60559 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 2500 to 7000 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Installation Notes
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads.
Use pistons designed for our heads. Match with Edelbrock head gasket sets.
Designed for street/high-performance big-blocks operating from 2500-7000 rpm
Specially designed ports for increased flow and velocity over standard big-block cylinder heads
Highly-efficient 118cc open-style combustion chamber
High-velocity 315cc long/300cc short intake ports
Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight
CNC Ported No
Combustion Chamber Volume 118.0 cc
Deck Height 9.8 in
Deck Thickness 0.562 in
Exhaust Valve Diameter 1.880 in
Guide Plates Included Yes
Intake Runner Volume 315.0 cc
Intake Valve Diameter 2.190 in
Material Aluminum
Push Rod Diameter 0.375 in
Rocker Stud Diameter 0.437 in
Valve Angle 26 deg
Valve Spring Diameter 1.500 in
Valve Spring Maximum Lift 0.700 in
Valve Stem Diameter 0.341 in
-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 GMC C2500-1981 GMC C3500-1982 GMC C2500-1982 GMC C3500-1983 GMC C2500-1983 GMC C3500-1984 GMC C2500-1984 GMC C3500-1985 GMC C2500-1985 GMC C3500-1986 GMC C2500-1986 GMC C3500-1988 Chevrolet C3500-1988 GMC C3500-1989 Chevrolet C3500-1989 GMC C3500-1990 Chevrolet C1500-1990 Chevrolet C3500-1990 GMC C3500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 Chevrolet C3500-1991 GMC C2500-1991 GMC C3500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 Chevrolet C3500-1992 GMC C2500-1992 GMC C3500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 Chevrolet C3500-1993 GMC C2500-1993 GMC C3500-1994 Chevrolet C2500-1994 Chevrolet C3500-1994 GMC C2500-1994 GMC C3500-1995 Chevrolet C2500-1995 Chevrolet C3500-1995 GMC C2500-1995 GMC C3500
