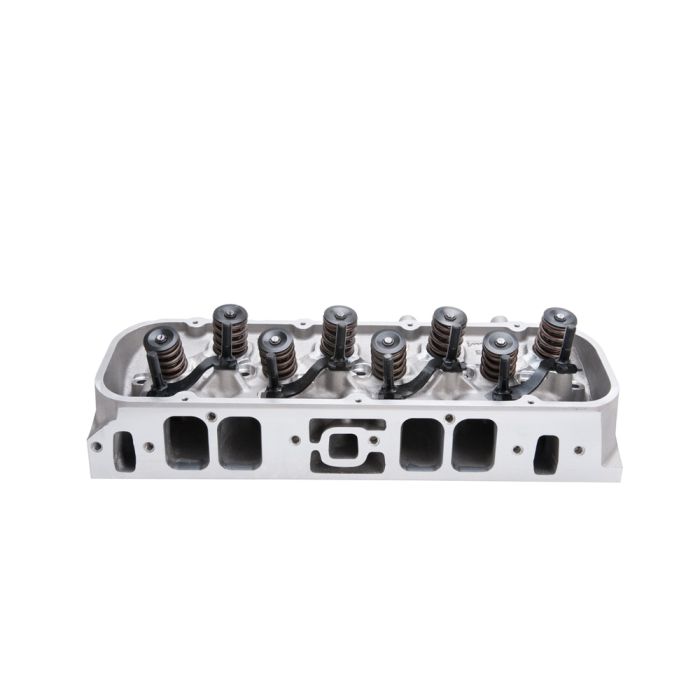

Edelbrock Performer RPM Big Block Chevy Rectangular Port Cylinder Head Hydraulic Roller Springs Complete

Edelbrock:
60555
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 5.45ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$999.50

Edelbrock Performer RPM Big Block Chevy Rectangular Port Cylinder Head Hydraulic Roller Springs Complete

The Edelbrock #60555 Performer RPM Rectangle Port cylinder heads are designed for Big-Block Chevy applications. The Edelbrock #60555 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 2500 to 7000 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Installation Notes

    EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS
    Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
    All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads.
    Use pistons designed for our heads. Match with Edelbrock head gasket sets.
    Designed for street/high-performance big-blocks operating from 2500-7000 rpm
    Specially designed ports for increased flow and velocity over standard big-block cylinder heads
    Highly-efficient 118cc open-style combustion chamber
    High-velocity 315cc long/300cc short intake ports
    Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight

CNC Ported    No
Combustion Chamber Volume    118.0 cc
Deck Height    10.2 in
Deck Thickness    0.562 in
Exhaust Valve Diameter    1.880 in
Guide Plates Included    Yes
Intake Runner Volume    315.0 cc
Intake Valve Diameter    2.190 in
Material    Aluminum
Push Rod Diameter    0.375 in
Rocker Stud Diameter    0.437 in
Valve Angle    26 deg
Valve Spring Diameter    1.550 in
Valve Spring Maximum Lift    0.700 in
Valve Stem Diameter    0.341 in

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 GMC C2500-1981 GMC C3500-1982 GMC C2500-1982 GMC C3500-1983 GMC C2500-1983 GMC C3500-1984 GMC C2500-1984 GMC C3500-1985 GMC C2500-1985 GMC C3500-1986 GMC C2500-1986 GMC C3500-1988 Chevrolet C3500-1988 GMC C3500-1989 Chevrolet C3500-1989 GMC C3500-1990 Chevrolet C1500-1990 Chevrolet C3500-1990 GMC C3500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 Chevrolet C3500-1991 GMC C2500-1991 GMC C3500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 Chevrolet C3500-1992 GMC C2500-1992 GMC C3500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 Chevrolet C3500-1993 GMC C2500-1993 GMC C3500-1994 Chevrolet C2500-1994 Chevrolet C3500-1994 GMC C2500-1994 GMC C3500-1995 Chevrolet C2500-1995 Chevrolet C3500-1995 GMC C2500-1995 GMC C3500

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
