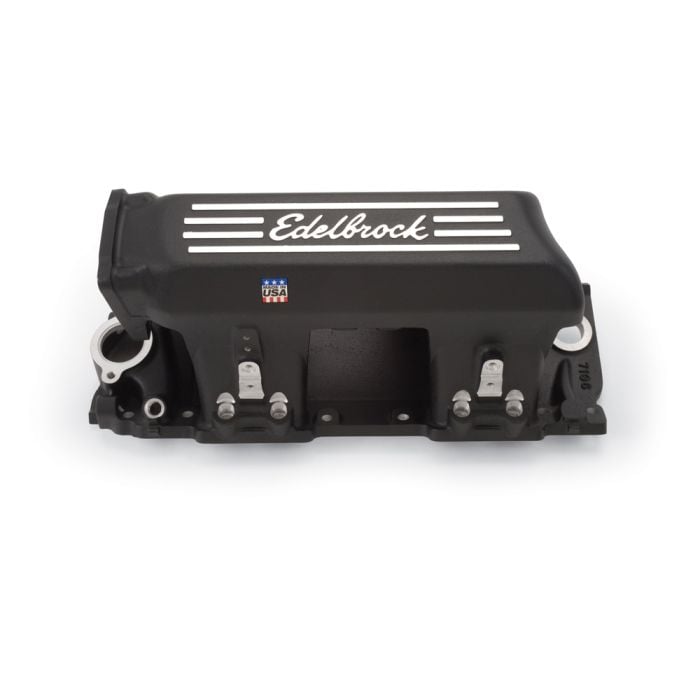

Edelbrock Part # 71363 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Center Maximum Height 10.000 in
CNC Ported No
Finish Black Powder Coated
Front Maximum Height 9.800 in
Rear Maximum Height 10.000 in
Single Or Dual Plane Type Single Plane
Recommended gasket: Edelbrock # 7202
Throttle body recommendations: Edelbrock # 3869, # 38693.
Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10°
Port exit dimensions: 1.67
