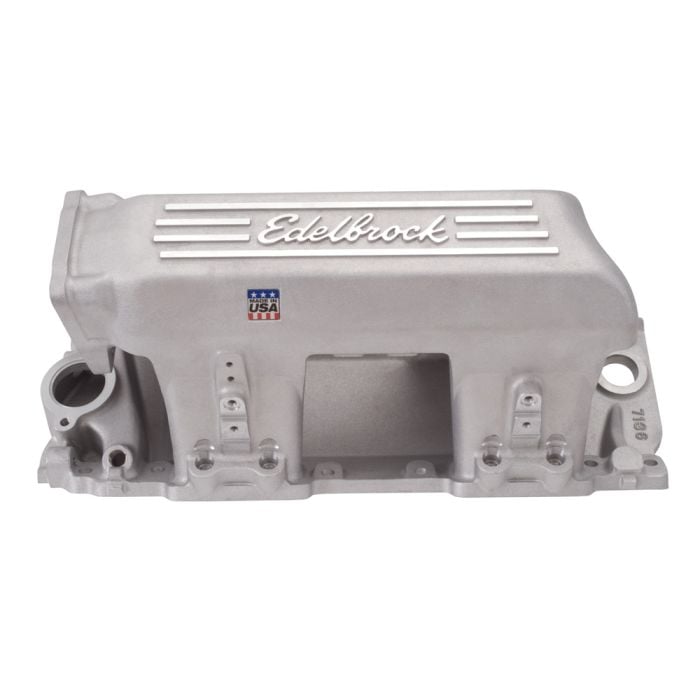

Edelbrock Pro-Flo XT Big Block Chevrolet EFI Intake Manifold Rectangle Port

Edelbrock:
7136
$563.95

Edelbrock Pro-Flo XT Big Block Chevrolet EFI Intake Manifold Rectangle Port

Edelbrock Part # 7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).

Center Maximum Height 10.000 in
CNC Ported No
Finish Satin
Front Maximum Height 9.800 in
Material Aluminum
Rear Maximum Height 10.000 in
Single Or Dual Plane Type Single Plane

Installation Notes:

Recommended gasket: Edelbrock # 7202
Throttle body recommendations: Edelbrock # 3869 or # 38693
Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10 Degree
Port exit dimensions: 1.67

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
