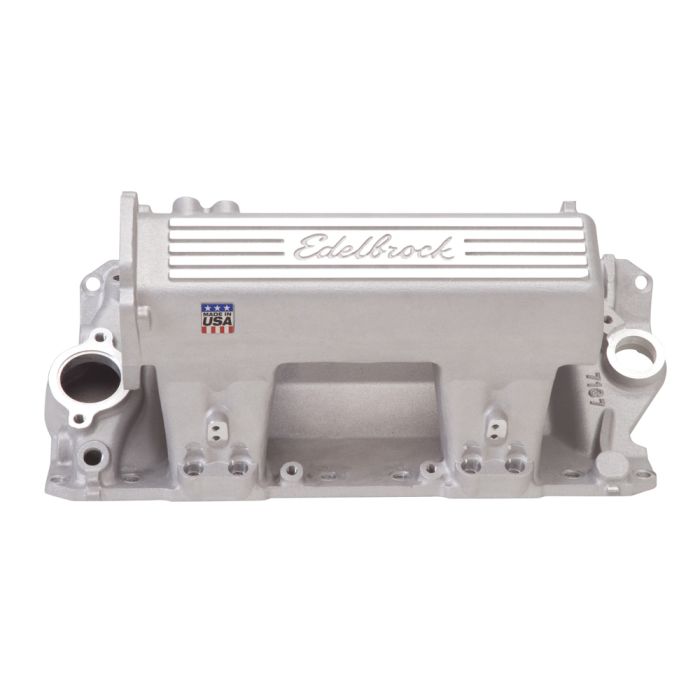

Edelbrock Pro-Flo XT Small Block Chevrolet EFI Intake Manifold

Edelbrock Part # 7137 Pro-Flo XT intake manifold is designed for 1957-86 S/B Chevy. This manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). This Pro-Flo XT EFI intake accepts Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (Sold Separately).

Center Maximum Height 9.000 in
CNC Ported No
Finish Satin
Front Maximum Height 9.000 in
Material Aluminum
Rear Maximum Height 8.200 in
Single Or Dual Plane Type Single Plane

Installation Notes:

Recommended gasket: Edelbrock # 7201
Manifold Dimensions: A-9.00", B-8.20", C-14.80"
Compatible with Edelbrock # 3869 or # 38693 90mm Pro-Flo XT Throttle body.
Machined for a Edelbrock # 36019 LS1 style MAP sensor, which mounts directly on the manifold.
The Edelbrock # 3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately.
The throttle body centerline is located 2.5
