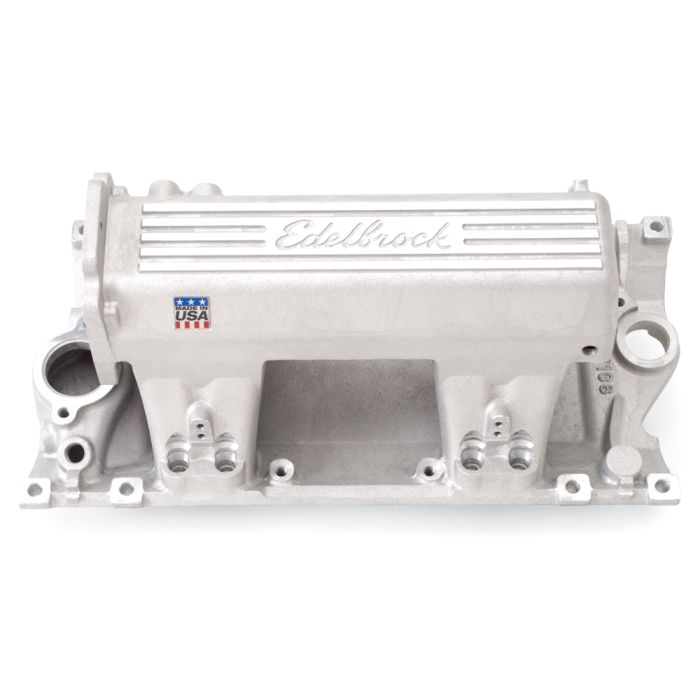

Edelbrock Part # 7138 Pro-Flo XT intake manifold is designed for 1957-86 S/B Chevy swapped with E-Tec/Vortec heads or 1996 and later Vortec Engines. This Pro-Flo XT intake is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque throughout the rpm range (1500-7000 rpm). Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (Sold Separately).
Center Maximum Height 9.200 in
CNC Ported No
Front Maximum Height 9.200 in
Rear Maximum Height 8.400 in
Single Or Dual Plane Type Single Plane
Recommended gasket: Edelbrock # 7235
Manifold Dimensions: A-9.00", B-8.20", C-14.80"
Compatible with Edelbrock # 3869 or # 38693 90mm Pro-Flo XT Throttle body.
Machined for a Edelbrock # 36019 LS1 style MAP sensor, which mounts directly on the manifold.
The Edelbrock # 3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately.
The throttle body centerline is located 2.5
