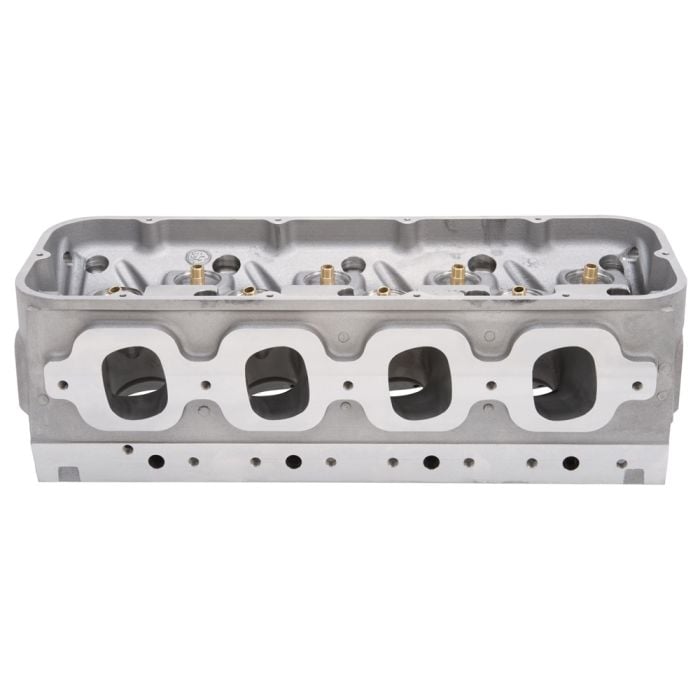

Edelbrock Pro-Port Big Victor III Big Block Chevy Cylinder Head HIP 11-Degree Single

The Edelbrock 614669 Big Block Chevy Big Victor III 11° Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.

Installation Notes

    Not ported versions of Edelbrock race-winning Victor Series CNC heads for professional cylinder head porter and engine builder
    Pro-Port cylinder heads are cast in USA at state-of--art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting
    Only heads designed specifically to accommodate almost any CNC port shape, size or location
    Offers enough wall thickness for CNC machining to various port dimensions
    In most cases seats and manganese-bronze valve guides are included
    Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process

CNC Ported    No
Combustion Chamber Volume    76.0 cc
Deck Height    9.8 in
Guide Plates Included    No
Material    Aluminum
Valve Angle    11 deg
