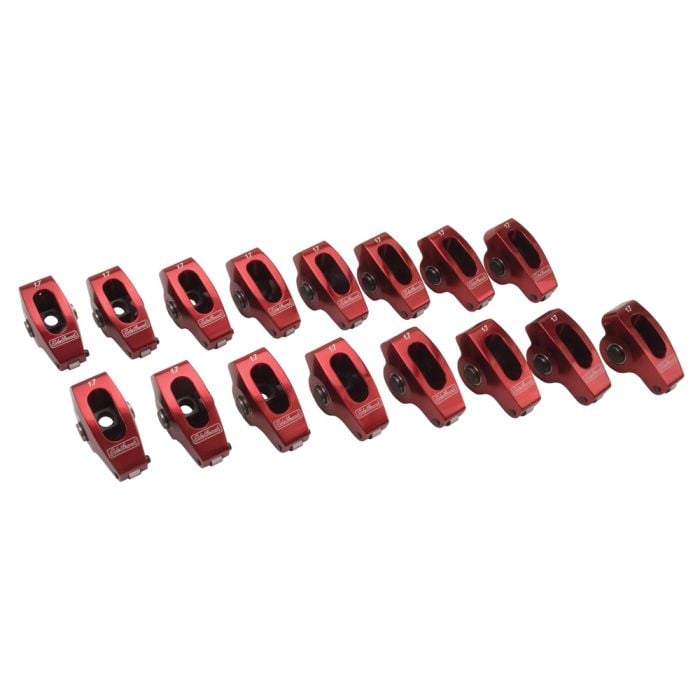

Edelbrock Red Roller Rocker Arms for Big Block Chevrolet 7/16 stud 1.7:1 Qty 16


Edelbrock Red Roller Rocker Arms for Big Block Chevrolet 7/16 stud 1.7:1 Qty 16

Edelbrock Part # 77790 Red Roller Rocker arms are designed for Big block Chevy’s using 7/16 studs. This 1.7:1 Ratio, set of 16 rockers are manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included.

Maximum Spring Outside Diameter 1.65 in
Self Aligning No
Rocker Arm Finish Red Anodized
Rocker Arm Nut Type Poly Lock
Rocker Arm Ratio 1.7
Rocker Arm Type Full Roller Rocker
Slot Width 1.484 in
Stud Thread Diameter 0.437 in
Shims Included No
Mounting Type Stud

Installation Notes:

Rocker geometry should be checked, making sure that the contact point of the roller remains properly on the valve tip and does not roll off the edge. Visual inspection of the rockers, valve springs, retainers, and pushrods should be made to ensure that none of these components come into improper contact with each other. If problems with valve train geometry occur, changes such as pushrod length may have to be made.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
