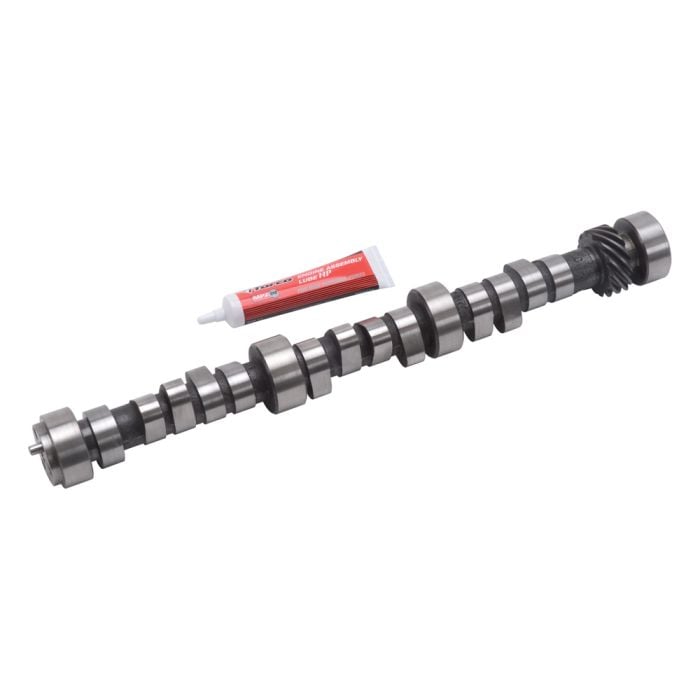

Edelbrock Rollin' Thunder Camshaft for Chevy 4.3L 90-Degree V6

Edelbrock:
3714
$351.95

Edelbrock Rollin' Thunder Camshaft for Chevy 4.3L 90-Degree V6

Edelbrock Rollin’ Thunder Camshaft # 3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. Rollin’ Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For use with OEM hydraulic roller lifters (use original lifters). Not for 1992-Later 4.3L balanced shaft engines. Requires aftermarket computer chip (not available from Edelbrock) for use with intake manifold # 3713. Call Edelbrock Tech 800-416-8628 for info.Camshaft specifications:• Intake duration: 210 Degrees • Exhaust duration: 214 Degrees • Intake lift: .479” • Exhaust lift: .488” • Lobe separation: 112 Degree • Intake Center Line: 107 • Vacuum: 17”

Installation Notes

    Compression ratio of at least 9.5:1
    Adjustable valvetrain required
    For street high-performance and racing applications only
    Lower than stock rear gearing
    High performance torque converter (in automatic transmission equipped vehicles) are necessary.
    Please be advised that an improper installation may result in LOW MILEAGE, POOR PERFORMANCE, and COSTLY REINSTALLATION AND EVEN ENGINE DAMAGE. Installing a camshaft is a complex procedure. Please follow these instructions carefully. Failure to do so may void your warranty.

Advertised Exhaust Duration    276 deg
Advertised Intake Duration    272 deg
Cam Type    Roller
Exhaust Duration at .050 inch Lift    214 deg
Exhaust Valve Lift    0.325 in
Intake Duration at .050 Inch Lift    210 deg
Intake Valve Lift    0.319 in
Intake Valve Lift with Factory Rocker Arm Ratio    0.479 in
Lifter Type    Roller
Lobe Separation    112 deg

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
