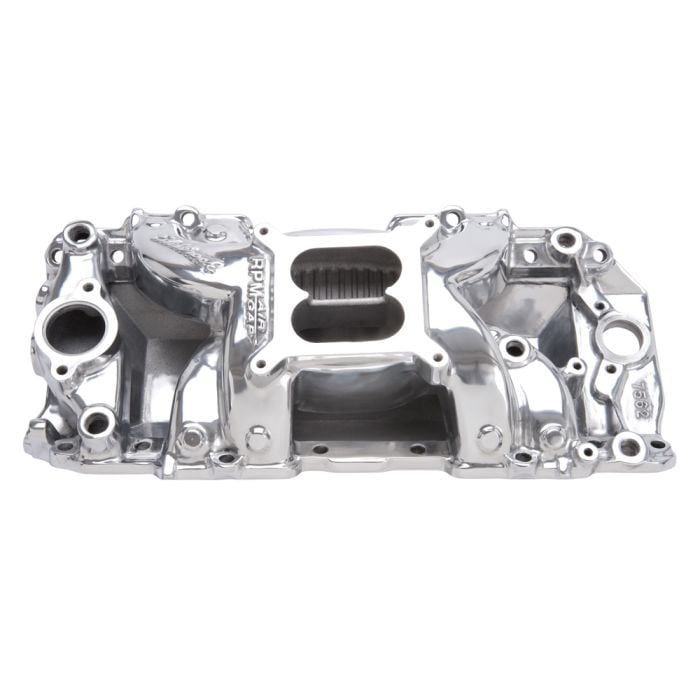

Edelbrock Part # 75621 RPM Air-Gap 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port heads. The open air space separates the runners from the hot engine oil, and as a result, the air/fuel mixture stays cooler for a denser charge and more power. This intake manifold is a dual-plane, high-rise design with a 180 degree firing order to produce incredible top-end horsepower while retaining good throttle response. The larger plenum and runners match the free-flowing exhaust, high-lift cams and other modifications of a high output engine. They are intended for high-performance street or competition engines that run up to 6500 rpm. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square-bore carbs only. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers a polished finish for a brilliant shine and classic look.

Center Maximum Height 5.220 in
CNC Ported No
Finish Polished
Front Maximum Height 4.450 in
Material Aluminum
Rear Maximum Height 6.000 in
Single Or Dual Plane Type Dual Plane

Installation Notes:

Recommended intake gasket: Edelbrock #7202.
Manifold height: A-4.45", B-6.0"
Carb pad height: 5.22"
Port exit dimensions: 1.56" x 2.24"
Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro.
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
