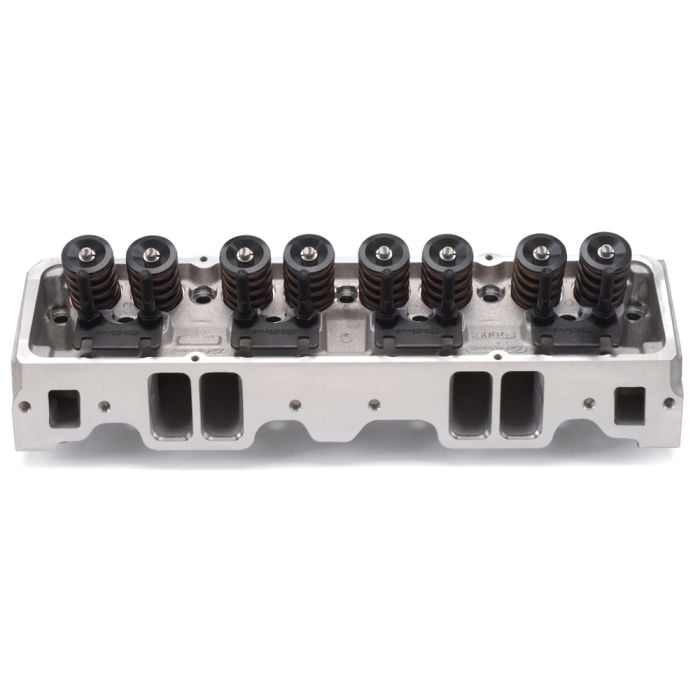

Edelbrock Small Block Chevy E-Series Cylinder Head E-210 Hydraulic Roller Complete Pair

Edelbrock:
5087
$1,299.50

Edelbrock Small Block Chevy E-Series Cylinder Head E-210 Hydraulic Roller Complete Pair

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

Installation Notes

    EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT
    Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
    Requires hardened pushrods.
    Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads.
    Cylinder heads provides race-level performance while maintaining full compatibility with off-the-shelf headers and hardware
    Features larger runners for increased airflow and revised exhaust ports and larger diameter springs for higher lift camshafts
    Capable of supporting more than 500 naturally aspirated horsepower, and even more in forced induction applications

CNC Ported    No
Combustion Chamber Volume    64.0 cc
Deck Height    9.025 in
Deck Thickness    0.562 in
Exhaust Valve Diameter    1.600 in
Guide Plates Included    Yes
Intake Runner Volume    210.0 cc
Intake Valve Diameter    2.080 in
Material    Aluminum
Push Rod Diameter    0.312 in
Rocker Stud Diameter    0.375 in
Valve Angle    23 deg
Valve Spring Diameter    1.540 in
Valve Spring Maximum Lift    0.650 in
Valve Stem Diameter    0.341 in

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 Chevrolet C10-1981 GMC C1500-1981 GMC C2500-1981 GMC C3500-1982 Chevrolet C10-1982 GMC C1500-1982 GMC C2500-1982 GMC C3500-1983 Chevrolet C10-1983 GMC C1500-1983 GMC C2500-1983 GMC C3500-1984 Chevrolet C10-1984 GMC C1500-1984 GMC C2500-1984 GMC C3500-1985 Chevrolet C10-1985 GMC C1500-1985 GMC C2500-1985 GMC C3500-1986 Chevrolet C10-1986 GMC C1500-1986 GMC C2500-1986 GMC C3500

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

This product will fit the following Sierra 2500/3500 years:

This product will fit the following Silverado years:

This product will fit the following Silverado 2500/3500 years:
