Edelbrock Small Block Chevy Two Piece Timing Cover

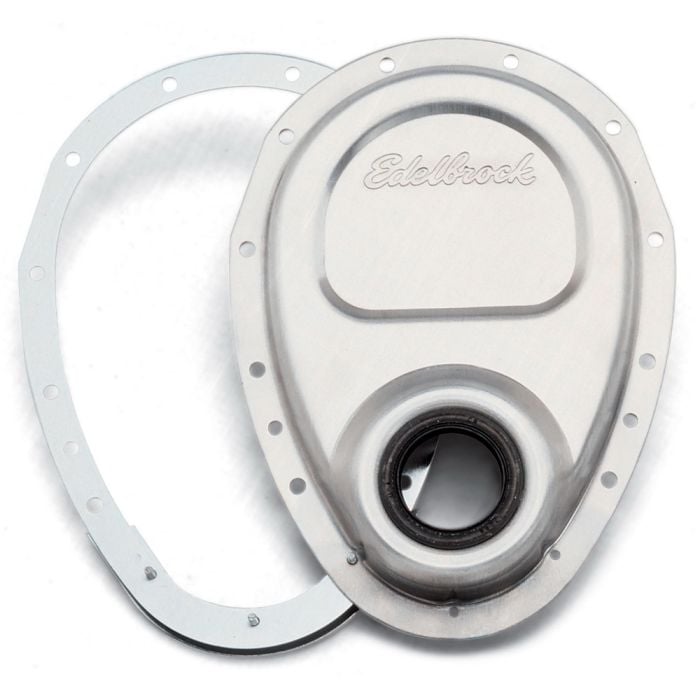

Edelbrock Part # 4242 Small-Block Chevrolet (May require modification to cover axle pin on gear drive.) This die-stamped two-piece front cover for small-block Chevys is made from .090" aluminum for light weight and excellent strength. This attractive and unique design allows quick camshaft removal without dropping oil pan or breaking oil pan seal. Includes all necessary gaskets, bolts and seals. Will not fit 1987 and later engines. Note: If cam button is desired, a nylon cam button must be used.

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 Chevrolet C10-1981 GMC C1500-1981 GMC C2500-1981 GMC C3500-1982 Chevrolet C10-1982 GMC C1500-1982 GMC C2500-1982 GMC C3500-1983 Chevrolet C10-1983 GMC C1500-1983 GMC C2500-1983 GMC C3500-1984 Chevrolet C10-1984 GMC C1500-1984 GMC C2500-1984 GMC C3500-1985 Chevrolet C10-1985 GMC C1500-1985 GMC C2500-1985 GMC C3500-1986 Chevrolet C10-1986 GMC C1500-1986 GMC C2500-1986 GMC C3500

Installation Notes

    Disconnect negative (-) battery terminal
    Drain coolant by removing the petcook from the radiator
    Disconnect radiator hose and heater hose from the timing cover
    Remove the drive belt and harmonic dampener using a special dampener puller. NOTE: On some vehicles, it is necessary to remove radiator and fan assembly to gain access to the harmonic dampener
    Disconnect fuel line from the mechanical fuel pump. Remove two bolts securing fuel pump and remove pump. NOTE: Place rag over fuel line and pump to avoid excess fuel spillage
    Remove four (4) oil pan bolts attached to the timing cover
    Remove eleven (11) bolts securing the water pump to the timing cover
    Remove four (4) bolts holding stock timing cover to block
    Place a rag over the oil pan opening to prevent debris from falling into oil pan. Carefully scrape all gasket surfaces on face of block and oil pan surface to remove old gasket and residue

Finish    Natural
Material    Aluminum
Mounting Hole Quantity    12
Gasket Or Seal Included    Yes
