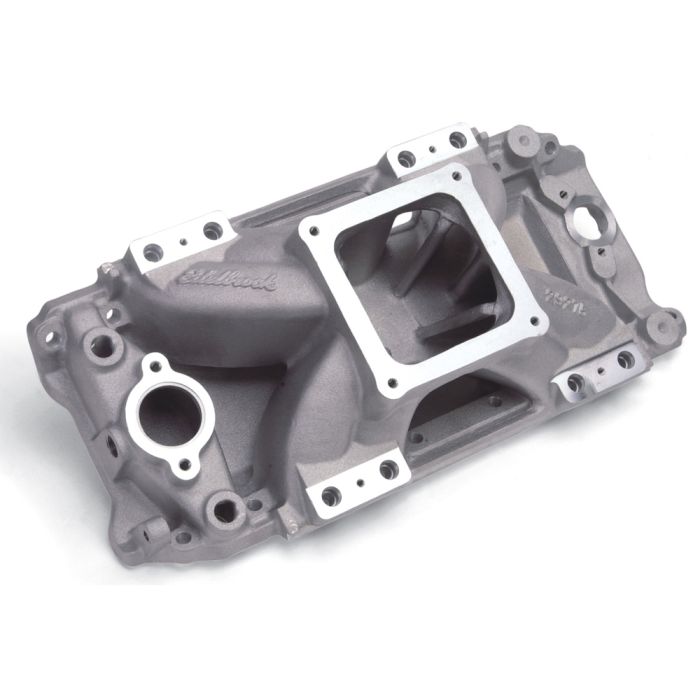

Edelbrock Super Victor EFI Intake Manifold Big Block Chevy

Edelbrock Part # 29275 Super Victor BBC EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. It features a single-plane design that is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29275 EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces.

Installation Notes

    Recommended intake gasket: Edelbrock # 7208, Fel-Pro # 1275
    Throttle body recommendations: Use Edelbrock # 3879 4500 style or # 3814 EFI elbow and # 3869 90mm throttle body.
    Manifold height: A-6.20", B-6.20"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    6.200 in
CNC Ported    No
Front Maximum Height    6.200 in
Material    Aluminum
Rear Maximum Height    6.200 in
Single Or Dual Plane Type    Single Plane
