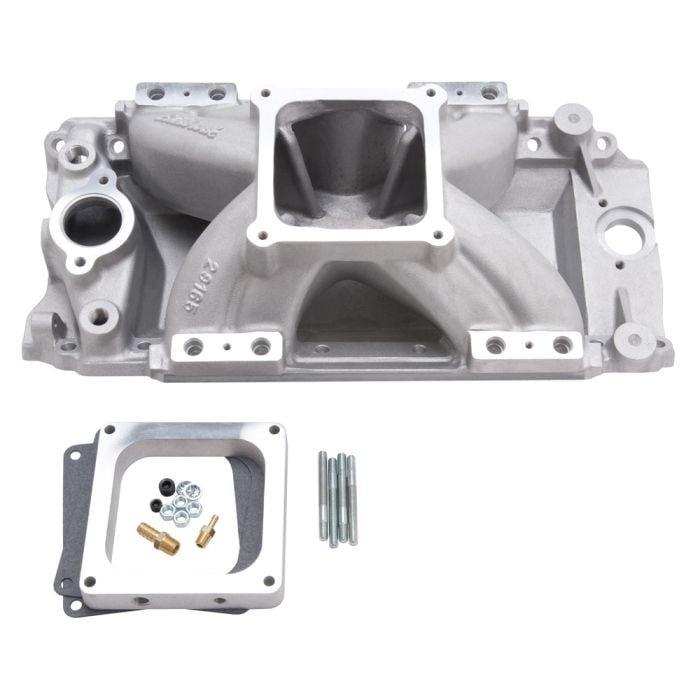

Edelbrock Super Victor EFI Intake Manifold for Big Block Chevrolet Tall Deck

Edelbrock Part # 29165 Super Victor BBC #29165 Tall-Deck EFI intake manifold is designed for Chevy big-blocks with rectangular port cylinder heads. This single-plane design is ideal for 500+ cubic-inches or any big-block drag race engine with high air flow requirements. In dyno testing, Super Victor #29165 Tall-Deck EFI outperformed the competition out-of-the-box with just a port match and minor blending of critical surfaces.

Installation Notes

    Recommended intake gasket: Edelbrock # 7208, Fel-Pro # 1275
    Manifold height: A-6.20", B-6.20"
    Throttle body recommendations: Edelbrock # 3879 4500 style or # 3814 EFI elbow and # 3869 90mm throttle body.
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    6.950 in
CNC Ported    No
Front Maximum Height    6.950 in
Material    Aluminum
Rear Maximum Height    6.950 in
Single Or Dual Plane Type    Single Plane
