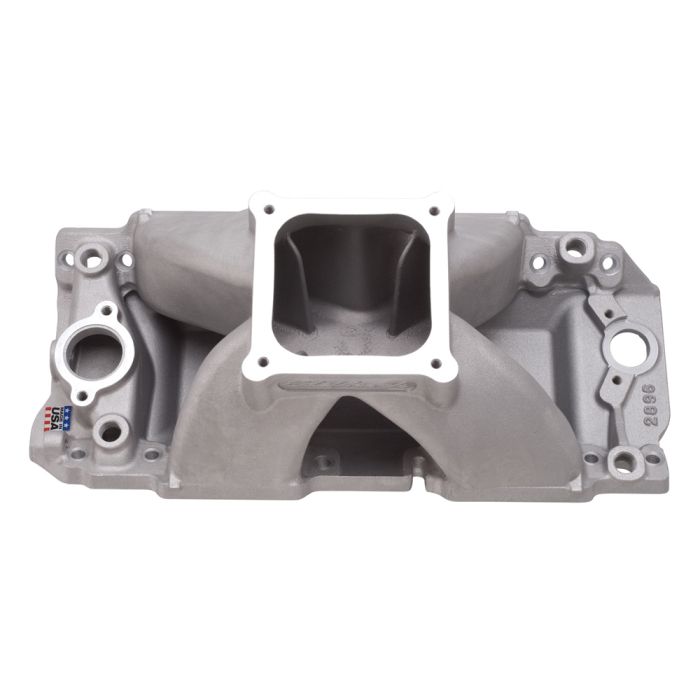

Edelbrock Super Victor II Intake Manifold for 9.8" Deck Big Block Chevy Standard Thick Flange

Edelbrock Part # 2896 Super Victor II is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Edelbrock Super Victor II #2896 intake manifold features an improved runner design with an incredible 5.0 square-inches of runner area in the plenum. Accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Installation Notes

    Recommended intake gasket: Fel-Pro # 1275
    Manifold height: A-7.56", B-7.56"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    7.560 in
CNC Ported    No
Front Maximum Height    7.560 in
Material    Aluminum
Rear Maximum Height    7.560 in
Single Or Dual Plane Type    Single Plane
