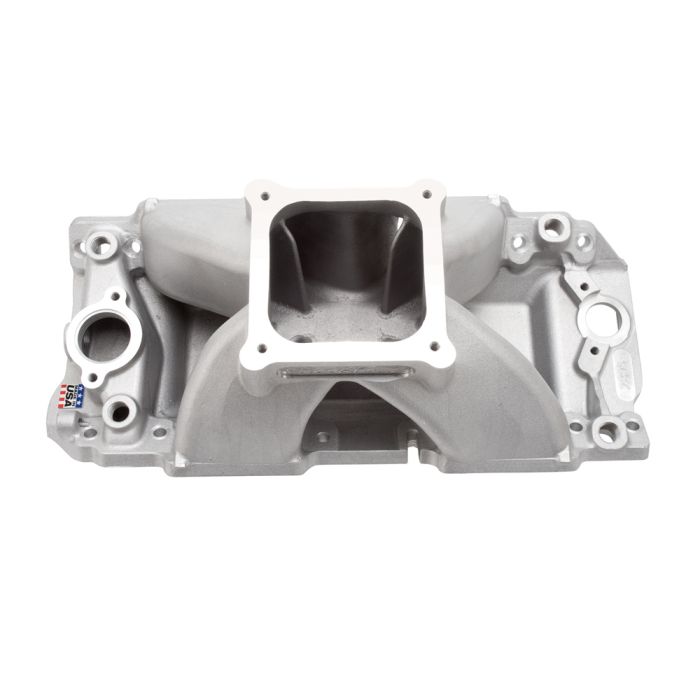

Edelbrock Super Victor II Manifold for 9.8" Deck Big Block Chevy 0.080 Raised Ports

Edelbrock Part # 2895 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional port heads. This single-plane intake manifold is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. This manifold features thicker flanges resulting with .080" increase in port exit height. Accepts standard height distributors. The Edelbrock Super Victor II #2895 intake manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Installation Notes

    Recommended intake gasket: Edelbrock # 7208
    Manifold height: A-6.20", B-6.20"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    7.620 in
CNC Ported    No
Front Maximum Height    7.620 in
Material    Aluminum
Rear Maximum Height    7.620 in
Single Or Dual Plane Type    Single Plane
