Edelbrock Sure Seat Valve Springs for Chevy 4.3L 90-Degree V6 1987-1995

Edelbrock:
5814

Edelbrock Sure Seat Valve Springs for Chevy 4.3L 90-Degree V6 1987-1995

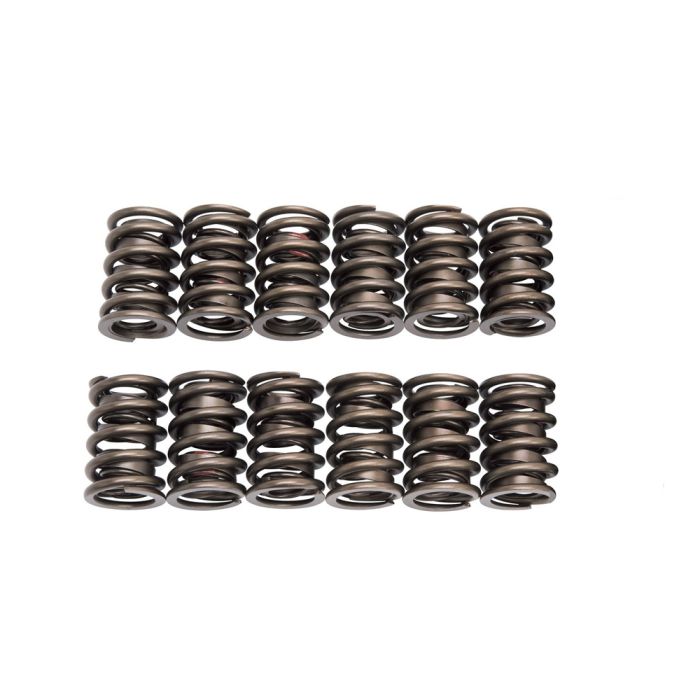

The Edelbrock #5814 Sure Seat Valve Spring for Chevy 4.3L 90° V6 1987-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Installation Notes

    Non-Rotator springs
    Recommended Edelbrock Cam: #3714

Inside Diameter    0.750 in
Material    Steel
Outside Diameter    1.250 in
Grade Type    Performance
Installed Pressure    110
Spring Type    Single Coil
Coil Bind Height    1.160 in
Open Height    0.490 in
Installed Height    1.700 in
Closed Pressure    110
Camshaft Type    Hydraulic Roller
Open Pressure    285
Closed Height    1.700 in

-1988 Chevrolet C1500-1988 Chevrolet C2500-1988 GMC C1500-1988 GMC C2500-1989 Chevrolet C1500-1989 Chevrolet C2500-1989 GMC C1500-1989 GMC C2500-1990 Chevrolet C1500-1990 Chevrolet C2500-1990 GMC C1500-1990 GMC C2500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 GMC C1500-1991 GMC C2500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 GMC C1500-1992 GMC C2500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 GMC C1500-1993 GMC C2500-1994 Chevrolet C1500-1994 Chevrolet C2500-1994 GMC C1500-1994 GMC C2500-1995 Chevrolet C1500-1995 Chevrolet C2500-1995 GMC C1500-1995 GMC C2500

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
