Edelbrock Sure Seat Valve Springs for Small Block Chevy O.E Cast Iron Cylinder Heads

Edelbrock:
5703
$54.95

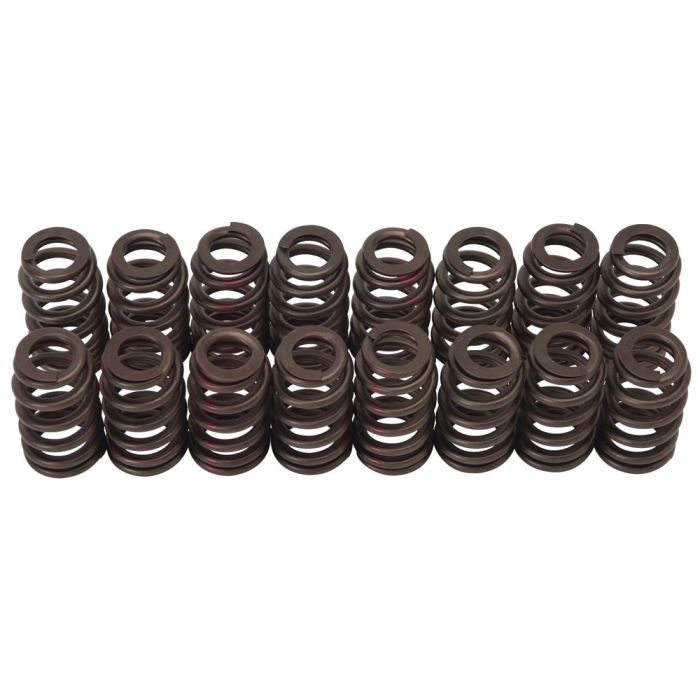

Edelbrock Sure Seat Valve Springs for Small Block Chevy O.E Cast Iron Cylinder Heads

The Edelbrock #5703 Sure Seat Valve Spring for S/B Chevy O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 Chevrolet C10-1981 GMC C1500-1981 GMC C2500-1981 GMC C3500-1982 Chevrolet C10-1982 GMC C1500-1982 GMC C2500-1982 GMC C3500-1983 Chevrolet C10-1983 GMC C1500-1983 GMC C2500-1983 GMC C3500-1984 Chevrolet C10-1984 GMC C1500-1984 GMC C2500-1984 GMC C3500-1985 Chevrolet C10-1985 GMC C1500-1985 GMC C2500-1985 GMC C3500-1986 Chevrolet C10-1986 GMC C1500-1986 GMC C2500-1986 GMC C3500-1988 Chevrolet C1500-1988 Chevrolet C2500-1988 Chevrolet C3500-1988 GMC C1500-1988 GMC C2500-1988 GMC C3500-1989 Chevrolet C1500-1989 Chevrolet C2500-1989 Chevrolet C3500-1989 GMC C1500-1989 GMC C2500-1989 GMC C3500-1990 Chevrolet C1500-1990 Chevrolet C2500-1990 Chevrolet C3500-1990 GMC C1500-1990 GMC C2500-1990 GMC C3500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 Chevrolet C3500-1991 GMC C1500-1991 GMC C2500-1991 GMC C3500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 Chevrolet C3500-1992 GMC C1500-1992 GMC C2500-1992 GMC C3500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 Chevrolet C3500-1993 GMC C1500-1993 GMC C2500-1993 GMC C3500-1994 Chevrolet C1500-1994 Chevrolet C2500-1994 Chevrolet C3500-1994 GMC C1500-1994 GMC C2500-1994 GMC C3500-1995 Chevrolet C1500-1995 Chevrolet C2500-1995 Chevrolet C3500-1995 GMC C1500-1995 GMC C2500-1995 GMC C3500

Installation Notes

    Non-Rotator
    Recommended Edelbrock Cams: 5002, 7102

Inside Diameter    0.875 in
Material    Steel
Outside Diameter    1.265 in
Installed Pressure    80
Spring Type    Single Coil
Coil Bind Height    1.150 in
Open Height    0.490 in
Installed Height    1.700 in
Closed Pressure    80
Camshaft Type    Hydraulic Flat Tappet
Open Pressure    285
Closed Height    1.700 in

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
