Edelbrock Torker II Small Block Chevy Intake Manifold 1955-1986 262-400ci Satin

Edelbrock:
5001
$216.95

Edelbrock Torker II Small Block Chevy Intake Manifold 1955-1986 262-400ci Satin

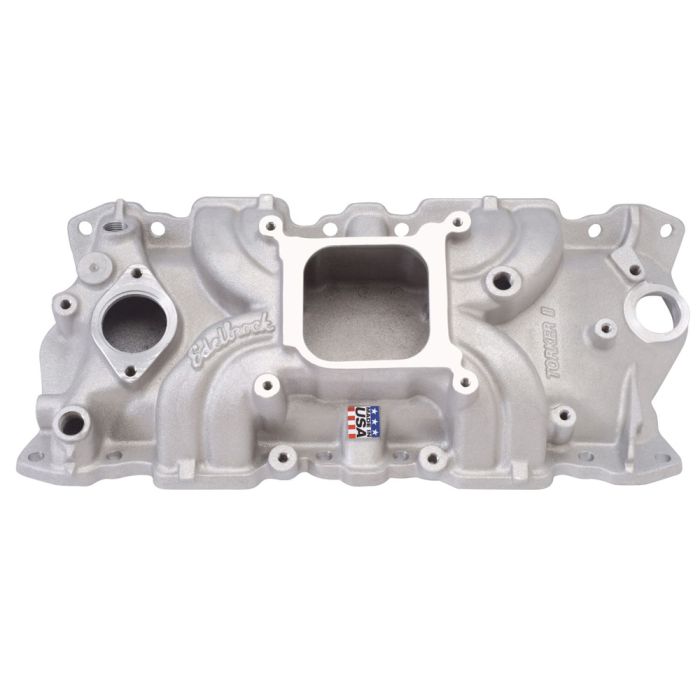

Edelbrock Part # 5001 Torker II intake manifold is designed for 1955-86 high-performance street 262-400 c.i.d. small-block Chevy's. This Torker manifold is a singe plane low rise intake that’s great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Accepts late-model water neck, air-conditioning, alternator and H.E.I. Intake manifold will fit Corvette and '87 and later stock heads. Will not fit '87 and later cast iron heads and will not cover port openings of Chevrolet Bowtie or LT1 heads. Not for heavy vehicles (trucks, vans etc.); use Performer EPS #2701.

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1981 Chevrolet C10-1981 GMC C1500-1981 GMC C2500-1982 Chevrolet C10-1982 GMC C1500-1982 GMC C2500-1983 Chevrolet C10-1983 GMC C1500-1983 GMC C2500-1984 Chevrolet C10-1984 GMC C1500-1984 GMC C2500-1985 Chevrolet C10-1985 GMC C1500-1985 GMC C2500-1986 Chevrolet C10-1986 GMC C1500-1986 GMC C2500

Installation Notes

    Manifold ht: A-3.53", B-4.63"
    Carb pad height: 4.08"
    Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. Use bracket # 8031 or # 8036 for 1972-78.
    Port exit dimensions: 1.09" x 1.73"
    Recommended intake gasket: Edelbrock # 7201.
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Use #8504 Edelbrock bolt kit
    Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
    NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
    DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
    Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
    Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

Center Maximum Height    4.080 in
CNC Ported    No
Front Maximum Height    3.530 in
Material    Aluminum
Rear Maximum Height    4.630 in
Single Or Dual Plane Type    Single Plane

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

This product will fit the following Sierra 2500/3500 years:

This product will fit the following Silverado years:

This product will fit the following Silverado 2500/3500 years:
