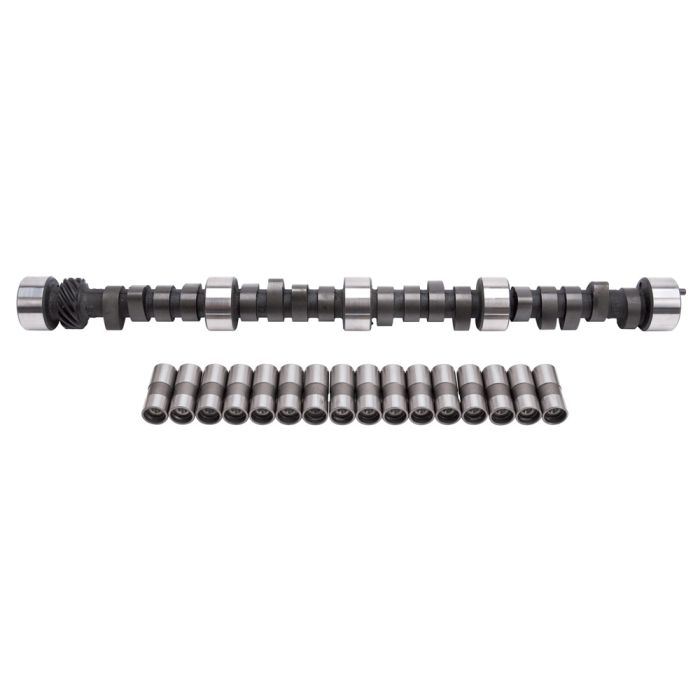

Edelbrock Torker-Plus Camshaft and Lifter Kit for Big Block Chevy 396-427-454 V8

Edelbrock:
5062
$344.95

Edelbrock Torker-Plus Camshaft and Lifter Kit for Big Block Chevy 396-427-454 V8

Edelbrock Part # 5062 Torker-Plus Camshaft is designed for big-block Chevy 396-427-454 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft.Camshaft Specifications: • Duration @ .050 Intake: 224 degrees • Duration @ .050 Exhaust: 232 degrees • Lift @ Valve Intake: .527” • Lift @ Valve Exhaust: .553” • Lobe Separation: 114 Degrees • Intake Centerline: 109 Degrees

Installation Notes

    Recommended Valve Springs for OEM heads: Edelbrock part # 5762
    Not for 1965-66 big-block Chevys requiring a grooved rear cam journal.
    Use only stock ratio rocker arms
    Adjustable valvetrain required
    In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent.
    Do not use rotator type valve springs or retainers for this application.
    Oil/additive must contain Zinc designed for use with flat tappet camshafts.
    Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
    Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Advertised Exhaust Duration    304 deg
Advertised Intake Duration    302 deg
Cam Type    Cast
Exhaust Duration at .050 inch Lift    232 deg
Exhaust Valve Lift    0.553 in
Intake Valve Lift    0.527 in
Lifter Type    Hydraulic
Lobe Separation    114 deg

-1975 Chevrolet C10-1976 Chevrolet C10-1977 Chevrolet C10-1978 Chevrolet C10-1979 Chevrolet C10-1979 GMC C1500-1979 GMC C2500-1979 GMC C3500-1980 Chevrolet C10-1980 GMC C1500-1980 GMC C2500-1980 GMC C3500-1981 GMC C2500-1981 GMC C3500-1982 GMC C2500-1982 GMC C3500-1983 GMC C2500-1983 GMC C3500-1984 GMC C2500-1984 GMC C3500-1985 GMC C2500-1985 GMC C3500-1986 GMC C2500-1986 GMC C3500-1988 Chevrolet C3500-1988 GMC C3500-1989 Chevrolet C3500-1989 GMC C3500-1990 Chevrolet C1500-1990 Chevrolet C3500-1990 GMC C3500-1991 Chevrolet C1500-1991 Chevrolet C2500-1991 Chevrolet C3500-1991 GMC C2500-1991 GMC C3500-1992 Chevrolet C1500-1992 Chevrolet C2500-1992 Chevrolet C3500-1992 GMC C2500-1992 GMC C3500-1993 Chevrolet C1500-1993 Chevrolet C2500-1993 Chevrolet C3500-1993 GMC C2500-1993 GMC C3500-1994 Chevrolet C2500-1994 Chevrolet C3500-1994 GMC C2500-1994 GMC C3500-1995 Chevrolet C2500-1995 Chevrolet C3500-1995 GMC C2500-1995 GMC C3500

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
