Edelbrock Torker-Plus Camshaft with Lifters for Small Block Chevy 283-350 V8

Edelbrock:
5002
$303.95

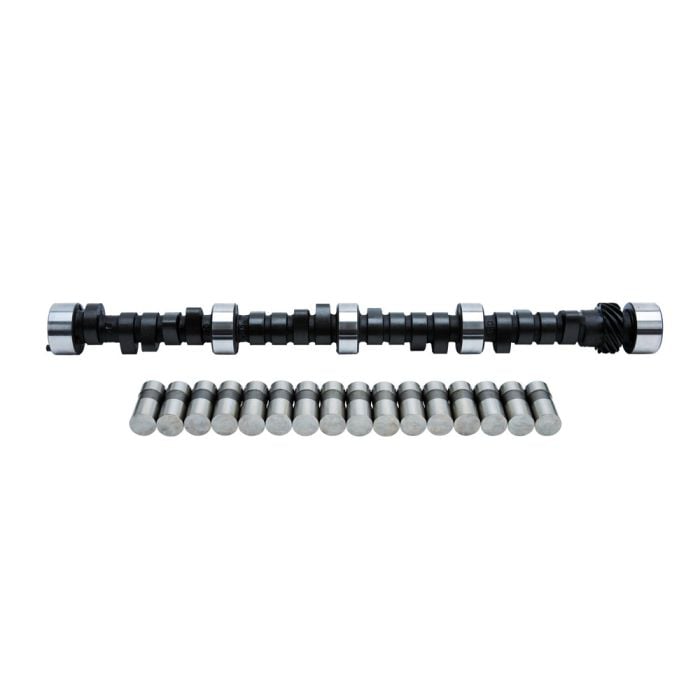

Edelbrock Torker-Plus Camshaft with Lifters for Small Block Chevy 283-350 V8

Edelbrock Part # 5002 Torker-Plus Camshaft is designed for small-block Chevy 283-350 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft.Camshaft Specifications: • Duration @ .050 Intake: 232 degrees • Duration @ .050 Exhaust: 234 degrees • Lift @ Valve Intake: .488” • Lift @ Valve Exhaust: .488” • Lobe Separation: 108 Degrees • Intake Centerline: 106 Degrees

Installation Notes

    Recommended Valve Springs for OEM heads: Edelbrock part # 5703
    Adjustable valvetrain required
    In order for this Performer RPM cam and lifter kit to be covered under ANY WARRANTY you MUST use the correct Edelbrock Sure Seat Valve Springs or equivalent.
    Do not use rotator type valve springs or retainers for this application.
    Oil/additive must contain Zinc designed for use with flat tappet camshafts.
    Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.
    Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Advertised Exhaust Duration    300 deg
Advertised Intake Duration    292 deg
Cam Type    Cast
Exhaust Duration at .050 inch Lift    234 deg
Exhaust Valve Lift    0.488 in
Intake Valve Lift    0.488 in
Lifter Type    Hydraulic
Lobe Separation    108 deg
Lifter Materials    Hardened Steel
Computer Controlled Compatible    No
Intake Duration .050 Inch Lift    232 deg

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
