Edelbrock Victor 24-degree Big Block Chevrolet Cylinder Head Bare

Edelbrock:
77419
$649.50

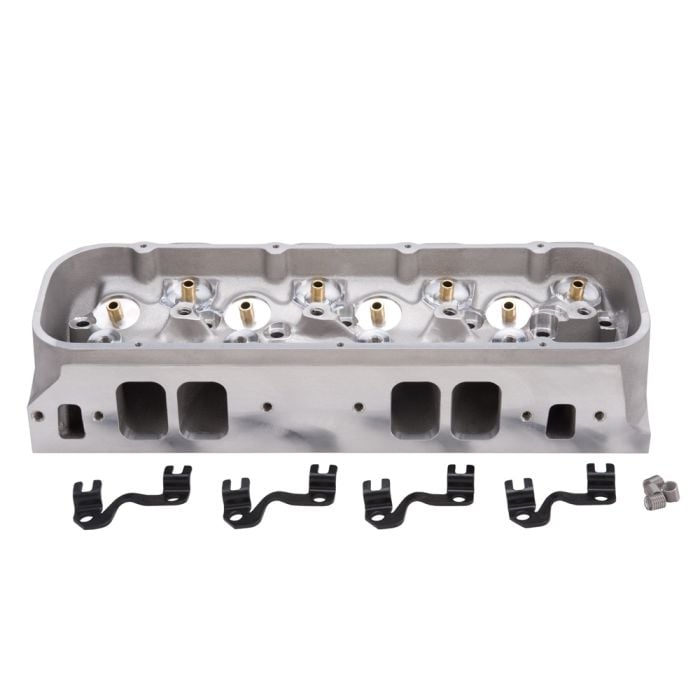

Edelbrock Victor 24-degree Big Block Chevrolet Cylinder Head Bare

The Edelbrock part # 77419 Victor 24° 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".

Installation Notes:

Matching stud girdle #7796 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate).

CNC Ported No
Combustion Chamber Volume 119.0 cc
Deck Height 9.8 in
Deck Thickness 0.562 in
Guide Plates Included Yes
Intake Runner Volume 340.0 cc
Material Aluminum
Push Rod Diameter 0.375 in
Valve Angle 24 deg



California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
