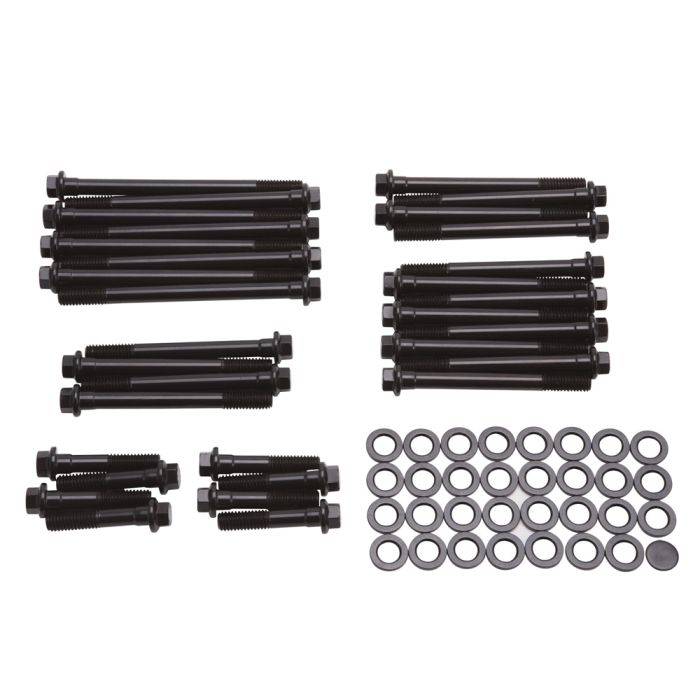

Edelbrock Victor Big Block Chevrolet Head Bolt Kit

The Edelbrock #8554 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.

Thread Type Coarse
Thread Diameter 0.437 in
Minimum Length 2.180 in
Color Black Oxide
Head Drive Type Hex
Length 5.500 in
Material Chromoly

Installation Notes:

The Edelbrock #8554 is made specifically for big block Chevy with Victor level cylinder heads
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. For 454 CID and small Mark IV engines, use Fel-Pro head gasket #1017-1, or equivalent. For 502 CID Mark V and Gen VI engines, use Fel-Pro head gasket #1047, or equivalent. Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. Apply liquid Teflon PST or other suitable thread sealant on any bolt threads that go into coolant passages. Torque bolts to 70 ft./lbs., following the factory tightening sequence (See Figure 1). A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling).

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
