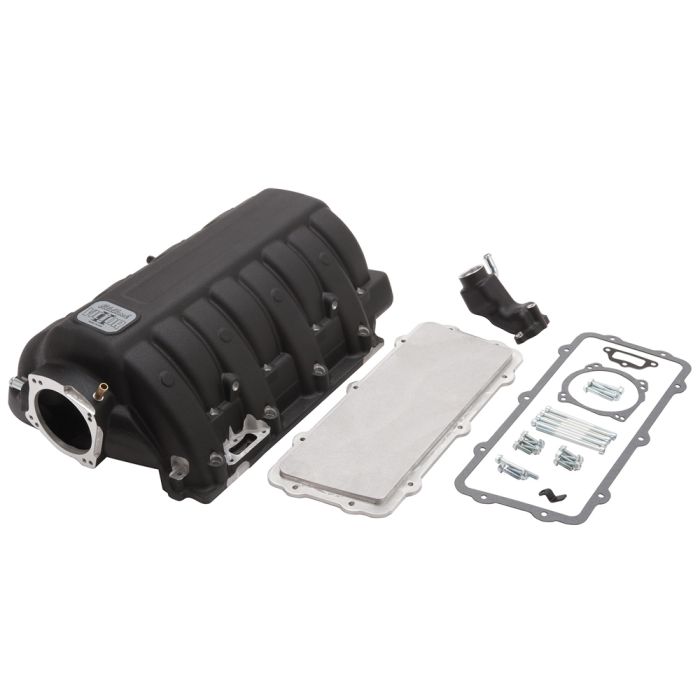

Edelbrock Part # 7179 Victor EFI intake manifold is designed for the "Eagle or WT" Chrysler 5.7L, 6.1L and 6.4L Gen III HEMI engines with fuel injection. The overall design is similar to the factory 6.1L SRT intake manifold, but features relocated fuel injector bosses for improved flow and added nitrous bosses along the near vertical runners. The front inlet can accommodate the factory style 80mm throttle body or the 92mm Hellcat throttle body. In testing, the Victor EFI prototype made 25 hp over the stock intake manifold on a 6.4L engine. Manifold will clear most hoods without modifications. Fuel rail kit available separately.
Center Maximum Height 7.850 in
CNC Ported No
Finish Black Powder Coated
Front Maximum Height 6.060 in
Rear Maximum Height 7.850 in
Single Or Dual Plane Type Single Plane
Port flanges have machined grooves to accept stock port seals.
Manifold Dimensions: A-6.06", B-7.85", C-18.30", D-2.25", E-0°
Port exit dimensions: 1.83" x 1.85"
Throttle body recommendations: Factory OEM or aftermarket
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
6.4L Challengers/Chargers/300s MUST use an OEM or OEM replacement 6.1L air intake system and without intake runner control valve
