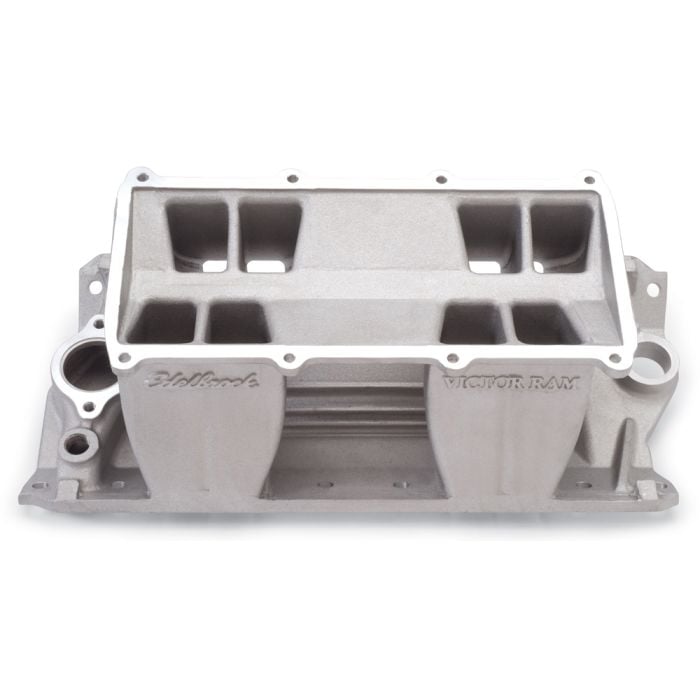

Edelbrock Victor Intake Manifold Base 23° Small Block V8 Chevy

Conquer the high velocity mixture flow of your Small Block V8 Chevy engine using this 23° Edelbrock intake manifold base (7070). Courtesy of the Victor series, this tunnel ram-style base is perfect for drag race engines that operate within 6500 to 10,000 RPM. Even race boat setups operating above 7000 RPM are welcome to use it. Regardless of application, the aluminum construction ensures it can handle your needs.

Features and Benefits:
- 23° aluminum, tunnel ram intake manifold base
- Measures 7.13” in height
- Great for controlling high velocity mixture flow
- Ideal for drag race engines operating at 6500-10000 RPM
- Works on race boat engines operating above 7000 RPM

Vehicle Fitment:
- 1960-1987 Chevy C10
- 1988-1998 Chevy/GMC C/K
- Fits 262-400 Small Block V8 Chevy engines

Tech Tip: Edelbrock recommends using Fel-Pro P/N: 1206 as the intake gasket with this base.

Additional Notes:
- Does not fit raised port cylinder heads and 1987+ cast iron heads.
- Do not use this intake manifold base with end seal gaskets.
- Distance from carburetor center to carburetor center is 8.88”. Manifold top with base height will be 9-1/4".
