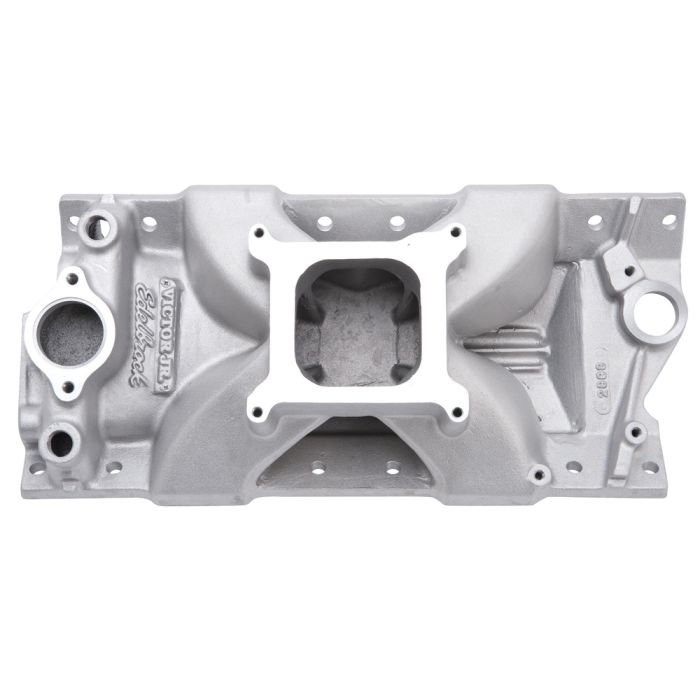

Edelbrock Victor Jr. 23-Degree Intake Manifold 1" Taller for Small Block Chevrolet

Edelbrock Part # 2999 Victor Jr. 23 degree Tall intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. This versatile manifold is excellent for many applications from high-performance street to drag/circle track racing. This Victor Jr. 23 degree tall intake manifold features a 1” taller carb pad than the Victor Jr. #2975.

Installation Notes

    Recommended intake gasket: Edelbrock # 7201 or Fel-Pro # 1206.
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    5.580 in
CNC Ported    No
Front Maximum Height    5.580 in
Material    Aluminum
Rear Maximum Height    5.580 in
Single Or Dual Plane Type    Single Plane
