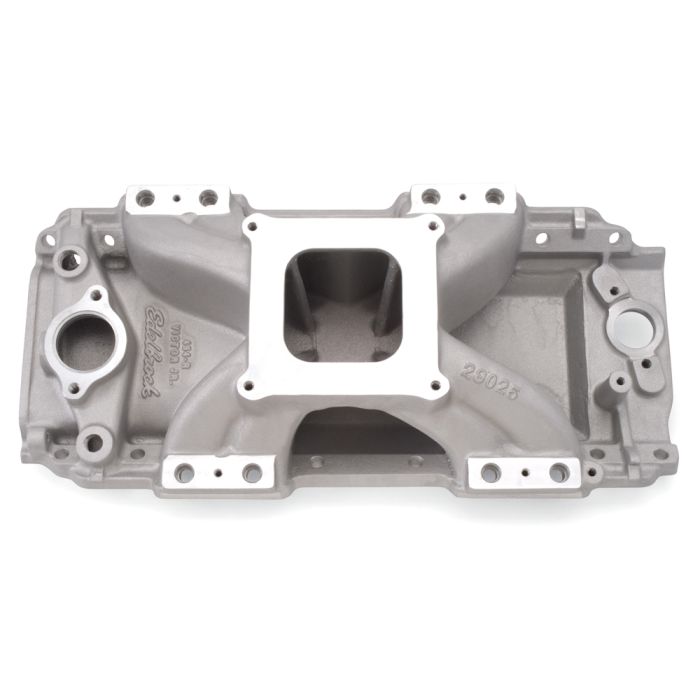

Edelbrock Victor Jr. 454-R EFI Intake Manifold Big Block Chevy

Edelbrock Part # 29025 Victor Jr. 454-R EFI intake manifold is designed for competition 396-502 big-block Chevy engines with rectangular-port cylinder heads. It features extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These intake manifolds are especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-R EFI intake manifold will fit Edelbrock Victor race cylinder heads #77609 and Victor 24 degree #77409, #77459, #77429, #77479 and #77489.

Installation Notes

    Throttle Body Recommendations: Use # 3878 4V series or # 3849 EFI elbow and # 3869 90mm throttle body.
    Recommended intake gasket: Edelbrock # 7208
    Manifold height: A-5.90" & B-5.90"

Center Maximum Height    5.960 in
CNC Ported    No
Front Maximum Height    5.960 in
Material    Aluminum
Rear Maximum Height    5.960 in
Single Or Dual Plane Type    Single Plane
