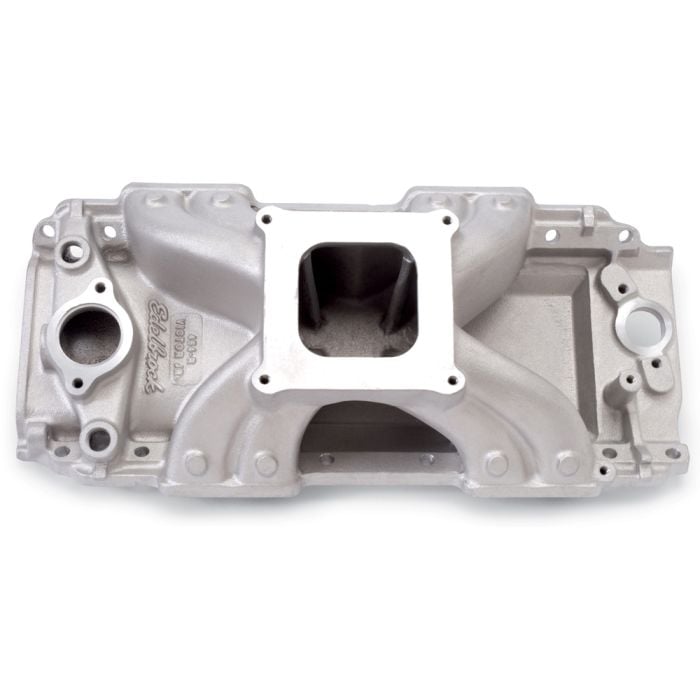

Edelbrock Victor Jr. 454-R Intake Manifold for Big Block Chevy with Rectangle Port Heads

Edelbrock Part # 2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485.

Installation Notes

    Recommended intake gasket: Edelbrock # 7208
    Manifold height: A-5.90" & B-5.90"
    Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
    Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Center Maximum Height    5.960 in
CNC Ported    No
Front Maximum Height    5.960 in
Material    Aluminum
Rear Maximum Height    5.960 in
Single Or Dual Plane Type    Single Plane
