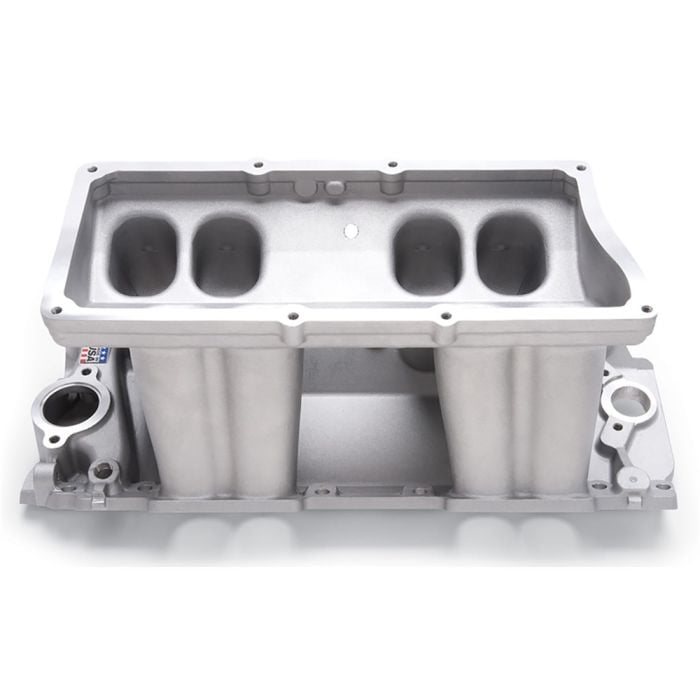

Edelbrock Victor Ram 2-R Intake Manifold Base for Carbureted Big Block V8 Chevy

Give your Big Block V8 Chevy engine a base that can handle high horsepower levels via this intake manifold base (7085). Edelbrock specially crafted this base for carbureted applications with conventional, rectangular-port cylinder heads. An improvement on the standard Ram 2-R design, it uses 7” long runners with a plenum that’s roughly 5-1/2 square inches. This makes it 25% larger than the original, operating within 4500 to 8500 RPM. The aluminum construction then ensures that it’s durable and lightweight.

Features and Benefits:
- Dual-plane, tunnel ram intake manifold base
- For use w/ rectangular port cylinder heads
- Perfect for high horsepower applications
- 4500-8500 RPM operating range
- Built from aluminum
- 7” long runners
- Plenum is approximately 5-1/2 square inches
- 25% larger than standard 2-R tunnel ram base
- Rear maximum height is 10-3/4”

Vehicle Fitment:
- 1960-1987 Chevy C10
- Fits 468-582 Big Block V8 Chevy engines
*For carbureted applications ONLY

Tech Tip: It is recommended to use Edelbrock P/N: 7208 or Fel-Pro P/N: 1275 as the intake gasket with this base.

Additional Notes:
- Do NOT use end seal gaskets with this base.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
