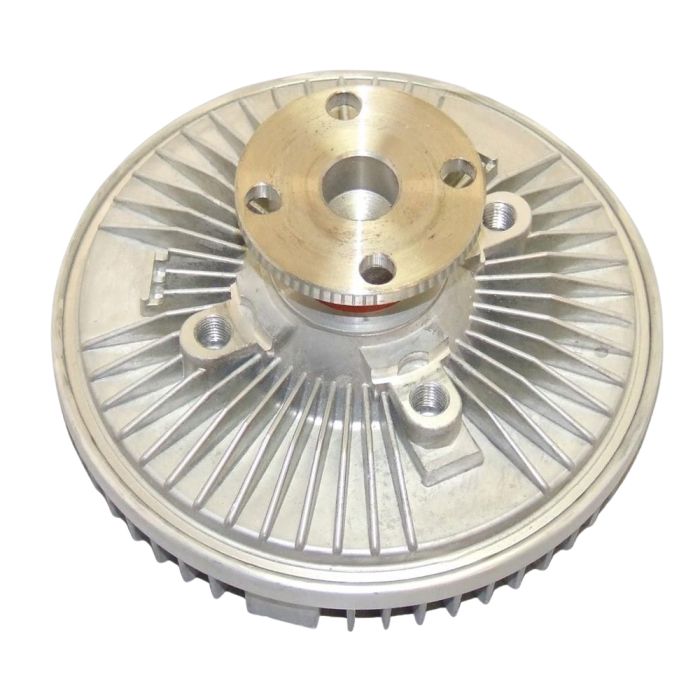

Severe-Duty Reverse-Rotation Fan Clutch Chevy C10 1986

Heavy-duty trucks require reliable cooling and long-lasting operation. With this severe-duty reverse-rotation fan clutch, you can rest assured that you’ll get both! A great fit for 1986 Chevy C10s, it offers a precise aluminum construction and a thermal clutch design. Together, they ensure efficient fan engagement under high-temperature conditions.

Features and Benefits:
- Meets or exceeds OEM performance standards
- Non-electronic clutch design
- Precision-machined aluminum construction
- Performance rated for heavy-duty truck applications
- Designed for flange-style mount with 4 mounting holes
- Ready for installation right out the box
- Raw aluminum finish

Specifications:
- Overall diameter: 6.45” (163.8mm)
- Overall height: 3.66” (92.9mm)
- Pilot diameter: 0.75”
- Pilot depth: 0.63”
- Fan bolt circle: 3.25” (82.6mm)
- Fan bolt diameter: 2.46” (62mm)
- M10 x 1.5 bolt thread

Vehicle Fitment:
- 1986 Chevy C10
- 1986 Chevy/GMC C/K Series (C20, C30, K10, K20, and K30)
- 1986 Chevy/GMC C/K Series Suburban (C20, K10, and K20)
- 1987-1991 Chevy Blazer and K5 Blazer
- 1985-1991 GMC Jimmy
- 1987 Chevy/GMC R/V Series (R10, R20, V10, and V20)

Please Note: Does NOT include mounting hardware.
