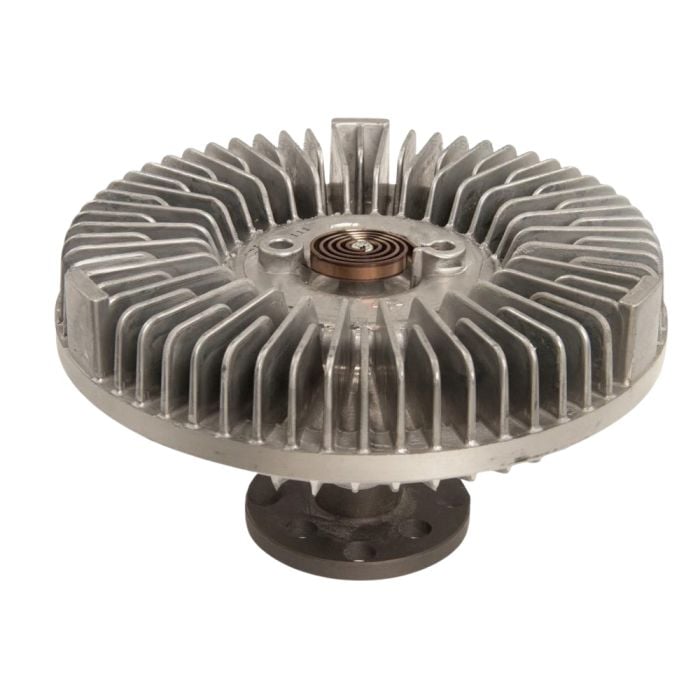

Severe-Duty Standard-Rotation Fan Clutch Chevy C10 1982-1986

Restore OE-level performance, fit, and appearance with this standard-rotation fan clutch! Made for 1982-1986 Chevy C10s, it provides reliable cooling under demanding conditions. It’s thanks in part to the thermal design, which ensures efficient engagement under rising temperatures.

Features and Benefits:
- Meets or exceeds OEM performance standards
- Non-electronic clutch design
- Precision-machined aluminum construction
- Designed for flange-style mount with 4 mounting holes
- Ready for installation right out the box
- Raw aluminum finish

Specifications:
- Overall diameter: 6.45” (163.8mm)
- Overall height: 3.66” (92.9mm)
- Pilot diameter: 0.75”
- Pilot depth: 0.63”
- Fan bolt circle: 3.25” (82.6mm)

Vehicle Fitment:
- 1982-1986 Chevy C10
- 1982-1986 Chevy C20, C30, K10, K20, and K30
- 1982-1986 GMC C1500, C2500, C3500, K1500, K2500, and K3500
- 1982-1991 Chevy/GMC K5 Blazer and Jimmy
- 1987 Chevy/GMC R10, R1500, R20, R2500, R30, and R3500
- 1987 Chevy/GMC V10, V1500, V20, V2500, V30, and V3500

Please Note: Does NOT include mounting hardware.
