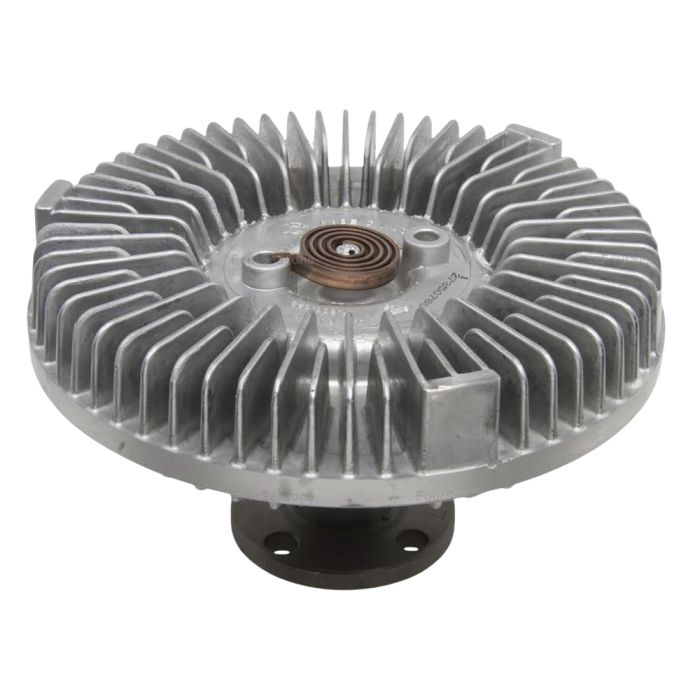

Severe-Duty Reverse-Rotation Fan Clutch Chevy/GMC C/K 1988-1993

Heavy-duty trucks require reliable cooling and long-lasting operation. With this severe-duty reverse-rotation fan clutch, you can rest assured that you’ll get both! A great fit for 1988-1993 C/Ks, it offers a precise aluminum construction and a thermal clutch design. Together, they ensure efficient fan engagement under high-temperature conditions.

Features and Benefits:
- Meets or exceeds OEM performance standards
- Non-electronic clutch design
- Precision-machined aluminum construction
- Performance rated for heavy-duty truck applications
- Designed for flange-style mount with 4 mounting holes
- Ready for installation right out the box
- Raw aluminum finish

Specifications:
- Overall diameter: 6.45” (163.8mm)
- Overall height: 3.66” (92.9mm)
- Pilot diameter: 0.75”
- Pilot depth: 0.63”
- Fan bolt circle: 3.25” (82.6mm)
- Fan bolt diameter: 2.46” (62mm)
- M10 x 1.5 bolt thread

Vehicle Fitment:
- 1988-1993 Chevy/GMC C/K
- 1987 Chevy/GMC V10 and V20
- 1987-1988 Chevy/GMC R/V Series Suburban (R10, R20, V10, and V20)
- 1987-1988 Chevy/GMC V10 and V20 Suburban
- 1987-1988 Chevy/GMC V10 and V20 Suburban
- 1988 Chevy/GMC V30
- 1988 Chevy/GMC R20, R30, V20, and V30
- 1988 Chevy/GMC R/V Series (R10, R20, V10, and V20)
- 1989-1991 Chevy/GMC R/V Series Suburban (R1500, R2500, V1500, and V2500)
- 1989-1991 Chevy/GMC R2500, R3500, V2500, and V3500
- 1989-1991 Chevy/GMC V3500
- 1989-1991 Chevy/GMC V1500 and V2500 Suburban
- 1991-1993 Chevy/GMC C/K 3500HD
- 1994-1996 AM General Hummer
- 1994-1996 Chevy/GMC G2500 and G3500
- 1994-1998 Chevy/GMC P30 and P3500
- 1996 Chevy/GMC Express (2500 and 3500)
- 1996 Chevy/GMC Savana (2500 and 3500)
- 1985-1991 GMC Jimmy

Please Note: Does NOT include mounting hardware.
