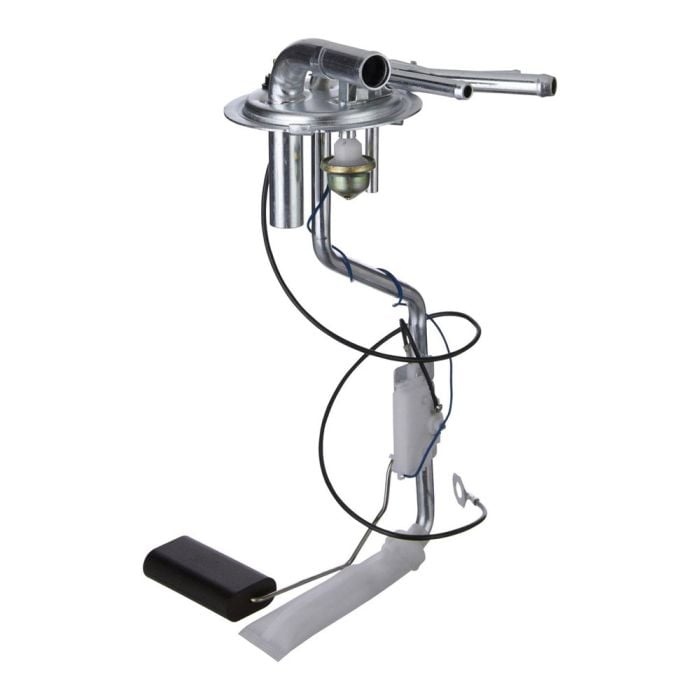

Fuel Tank Pickup/ Sender Assembly Dual Vent Chevy/ GMC Truck 79-87

Restore proper fuel pickup operation and accurate fuel-level readings in your 1979-1987 Chevy or GMC vehicle with this Fuel Tank Pickup and Sender Assembly. Designed to factory-style measurements and specifications, this assembly is compatible with applications equipped with 250, 292, 305, 350, 400, and 454 engines.

Features and Benefits:
- Designed for 1979-1987 Chevy and GMC SUV applications
- Compatible with 250, 292, 305, 350, 400, and 454 engines
- Factory-style replacement for the original pickup and sending unit
- Helps restore accurate fuel-level readings
- 0-ohm empty and 95-ohm full resistance range
- Dual-vent configuration
- Male pin-style electrical connector
- Single-pin terminal configuration
- 6mm butt-flare inlet
- 10mm butt-flare outlet
- Includes fuel strainer
- Includes gasket or seal
- Includes lock ring

The sending unit operates at 0 ohms empty and 95 ohms full to provide the proper resistance range for the fuel gauge. Its dual-vent configuration is complemented by a 6mm butt-flare inlet and 10mm butt-flare outlet. A strainer, gasket or seal, and lock ring are included to provide the essential components needed for installation. The fuel pump and wiring harness are not included.

Specifications:
- Adjustable Float Level: No
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Pin
- Gasket/seal included
- Lock ring included
- Strainer included
- Inlet Attachment Type: Butt Flare
- Inlet Diameter: 6mm
- Inlet Quantity: 1
- Outlet Attachment Type: Butt Flare
- Outlet Diameter: 10mm
- Outlet Quantity: 1
- Resistance at Empty: 0 Ohms
- Resistance at Full: 95 Ohms
- Terminal Quantity: 1
- Terminal Type: Pin
- Vent Quantity: 2
- Wire Quantity: 2

Vehicle Fitment:
- 1979-1987 Chevy Blazer
- 1979-1987 GMC Jimmy
- 1979-1987 Chevy/GMC Suburban
