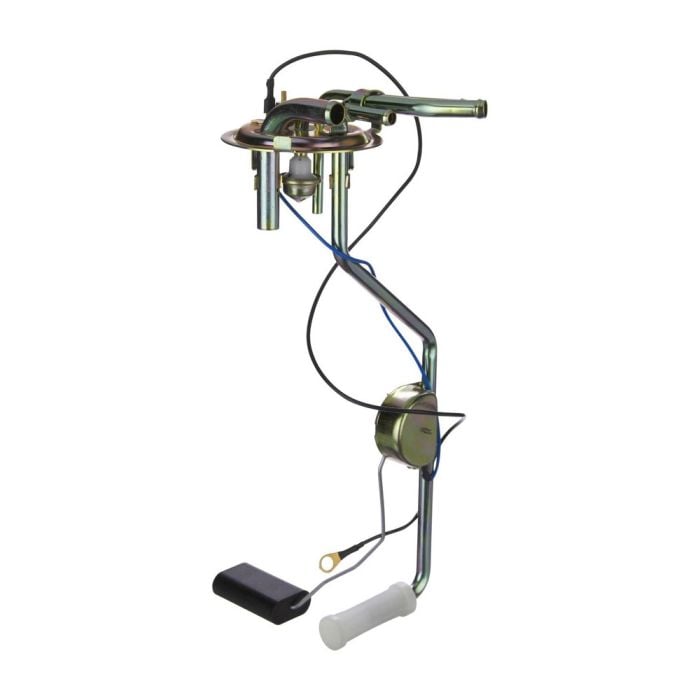

Fuel Tank Pickup/ Sender Assembly Short Float Arm Dual Vent Chevy/ GMC 73-77

Restore proper fuel pickup operation and accurate fuel-level readings in your 1973-1977 Chevy or GMC vehicle with this Fuel Tank Pickup and Sender Assembly. Designed for applications equipped with 250, 292, 305, 307, 350, 400, or 454 engines, this assembly is manufactured to factory-style measurements and specifications for proper fit and function.

Features and Benefits:
- Designed for 1973-1977 Chevy and GMC SUV applications
- Compatible with 250, 292, 305, 307, 350, 400, and 454 engines
- Short float arm configuration
- Dual-vent design
- Factory-style replacement for the original pickup and sending unit
- Helps restore accurate fuel-level readings
- 0-ohm empty and 95-ohm full resistance range
- Male pin-style electrical connector
- 6mm fuel inlet
- 10mm fuel outlet
- Butt-flare inlet and outlet connections
- Includes fuel strainer
- Includes gasket or seal
- Includes lock ring
- Direct replacement design

This version features a short float arm and dual-vent configuration for the appropriate fuel tank application. The sending unit operates at 0 ohms empty and 95 ohms full and features a 6mm inlet with a 10mm outlet. A fuel strainer, gasket or seal, and lock ring are included for a more complete installation. The fuel pump and wiring harness are not included.

Specifications:
- Float Arm: Short
- Vent Configuration: Dual Vent
- Adjustable Float Level: No
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Pin
- Gasket/Seal Included
- Lock Ring Included
- Strainer Included
- Inlet Attachment Type: Butt Flare
- Inlet Diameter: 6mm
- Inlet Quantity: 1
- Outlet Attachment Type: Butt Flare
- Outlet Diameter: 10mm
- Outlet Quantity: 1
- Resistance at Empty: 0 Ohms
- Resistance at Full: 95 Ohms
- Terminal Quantity: 1
- Terminal Type: Pin
- Vent Quantity: 2
- Wire Quantity: 2

Vehicle Fitment:
- 1973-1977 Chevy Blazer
- 1973-1977 GMC Jimmy
- 1973-1977 Chevy/GMC Suburban
