The Mid Mount Accessory Drive System from Holley (20240) removes the need for bulky accessory mounts to improve engine bay space. Holley’s kit relocates all components on your accessory drive directly to a new water pump with accessory brackets built in. This pulls everything closer together so you can get the most out of your engine bay.
Features and Benefits
- Compact Accessory Mounting
- Modern Accessory Components
- Complete System
- Easy Assembly With Instructions
- Includes Hardware
This design offers superb engine visibility to show off your horsepower, not your accessories. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. Also integrated are the compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir.
The water pump design incorporates optional side or top heater ports. The top thermostat bypass and heater ports are recessed into the manifold. So, if you don't need them, you don't see them.
When Holley says “complete,” they mean it. The Mid-mount system comes with everything you need. All accessories are included: the water pump, A/C compressor, Alternator, and P/S pump with reservoir. All pulleys and the belt are supplied. Even A/C line adapter, heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation.

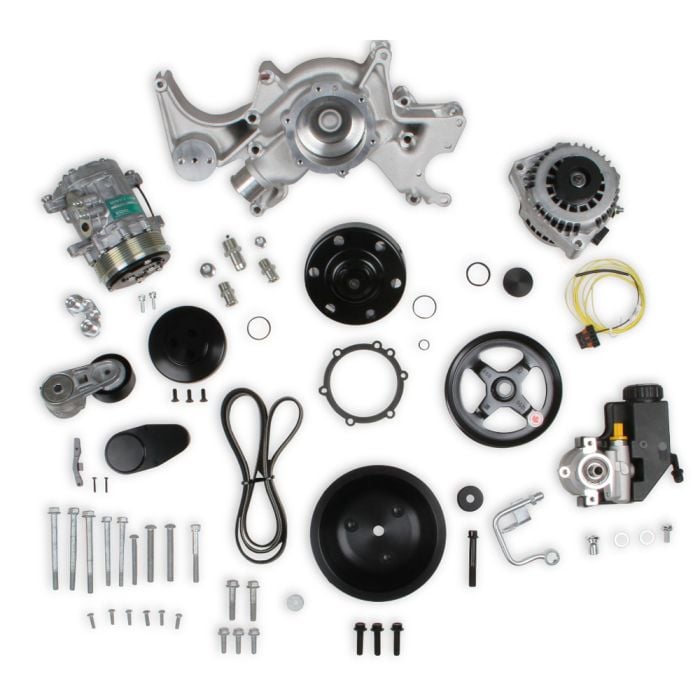

This Kit Includes:
- Holley LT1 Style water pump
- Hidden thermostat bypass and heater hose ports with NPT line adapters included
- Compact SD7 A/C compressor with line adapter included
- Saginaw Type II power steering pump with baffled reservoir
- Six Phase Alternator
- P/S adapter hardline to AN -6 adapter included
- OE pulley ratios for optimal accessory performance
- Billet alternator, tensioner, and compressor pulley covers
- Natural finish
- All necessary hardware and harnesses
