Holley HP/ VR Series Fuel Filter Mounting Brackets Billet Aluminum Black Anodized

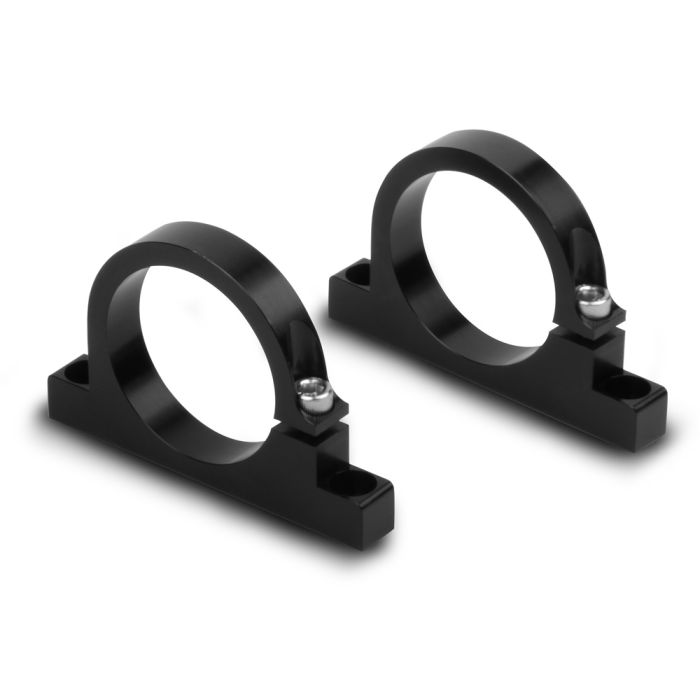

These Fuel Filter Mounting Brackets (162-574) are designed for use with HP Series and VR Series billet fuel filter lines. They fit Holley or Earl's filters that run 175, 260, or 460 gallons per hour. They utilize a clamping design for a secure hold. They also feature a billet construction with a black anodized finish that resists corrosion over time. Stainless steel hardware is included for mounting.

Features and Benefits:
- Fits Holley/Earl's HP/VR Series billet fuel filter running 175, 260, or 460 GPH
- Fits EFI Filter/Regulator with 50.3 mm I.D.
- Secure clamping design
- Billet aluminum construction
- Black anodized finish
- Mounts through bracket or threads onto bracket base
- Includes stainless steel hardware
- Each bracket measures 1/2" thick x 3-3/4" wide

Installation Notes:
- Mounting Bracket Thru-Bolt Holes: c/l to c/l = 3.150" & use w/ 1/4" Mounting Bolts.
- The threaded mounting holes in the bracket are M6-1.0.
- Mounting Bolt Holes: c/l to c/l = 3.150" & use w/ 1/4" Mounting Bolts.
