Holley Under Bed Tank Kit Chevrolet C10 1963-1966

Want to move your fuel tank away from the cab? For safety's sake, that's not a bad idea! This Under Bed Fuel Tank Kit comes with everything your need, including a 255 LPH fuel pump.

Features and Benefits:
- Tanks are coated galvanized steel
- Powder coated silver for total corrosion protection
- 255 LPH fuel pump with hanger assembly
- Gives you the fuel you need with in-tank quietness
- Sender has ¼” NPT Supply and Return line ports
- Easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges

This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included.

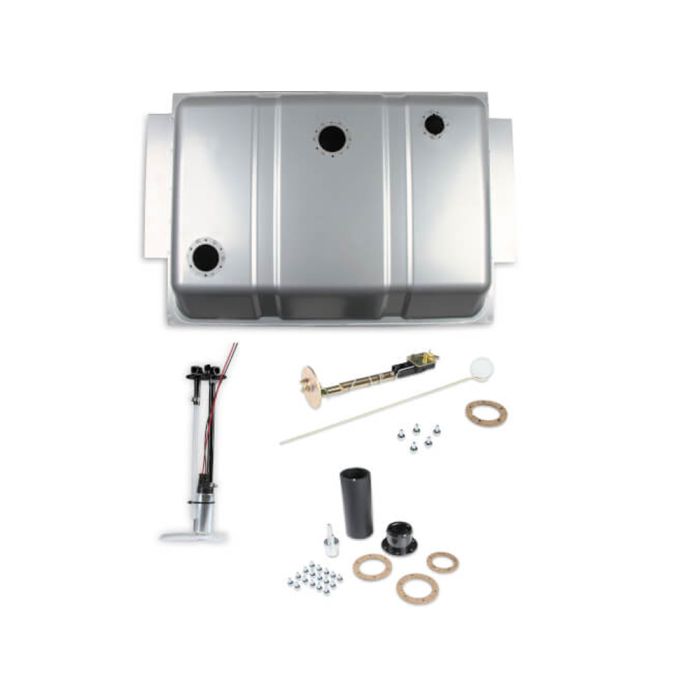

The fuel filler neck will go up through the bed floor. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks.

Specifications:
- 18-gallon capacity
- Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
- Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange)
- Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange)

Vehicle Fitment: 1963-1966 C10
