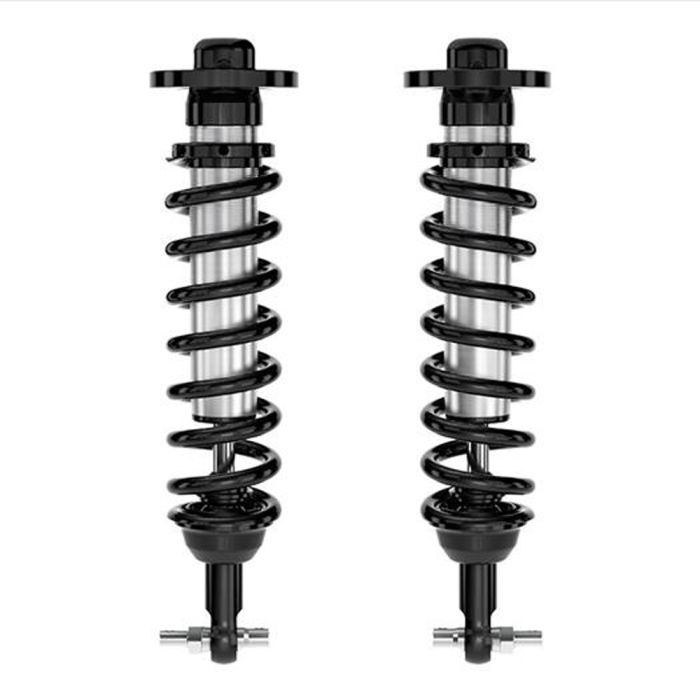

ICON Vehicle Dynamics 2.5 V.S Series 0-3” Lift IR Coilover Kit 2WD F-150 21-23

Improve your 2021-2023 2-wheel drive F-150’s performance with this ICON Vehicle Dynamics 2.5 V.S Series IR Coilover Kit! Designed for the front end, this kit's vehicle-specific valving provides a sport-tuned feel while its 0-3” lift allows the use of larger wheel and tire combinations. For an excellent driving experience everywhere you go, the larger 2-1/2” shock body and increased piston area provides improved damping ability and outstanding ride characteristics. No welding or cutting is required for this kit's bolt-on installation!

Features and Benefits:
- Increased wheel travel and ride quality
- Vehicle-specific tuning
- 2-1/2” shock body and increased piston area
- Superior shock damping and control
- Adjustable 0-3" lift height
- Allows larger wheel & tire combinations
- ICON-engineered Eibach springs
- CNC machined 6061 Aircraft-grade aluminum components
- Corrosion-resistant CAD-plated shock bodies with 7/8" shafts
- CNC-machined alloy lower bar pin
- FK rod end bearings for longevity & minimal deflection
- Bolt-on design, no drilling, cutting, or welding

Vehicle Fitment:
- 2021-2023 Ford F-150s
*Fits 2WD models.
*Not compatible with models equipped with Continuously Controlled Damping (CCD).
*Not compatible with models equipped with BlueCruise.

Please Note: When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear.

Additional Notes:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17 x 8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18 x 9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20 x 9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Compatible with only rear 2-wheel drive models
- Lift heights are above 2” and may require aftermarket front upper control arms to maintain proper alignment
- Models equipped with PowerBoost hybrid engines will have a lift height range of 0-2.75" overstock
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5" overstock
