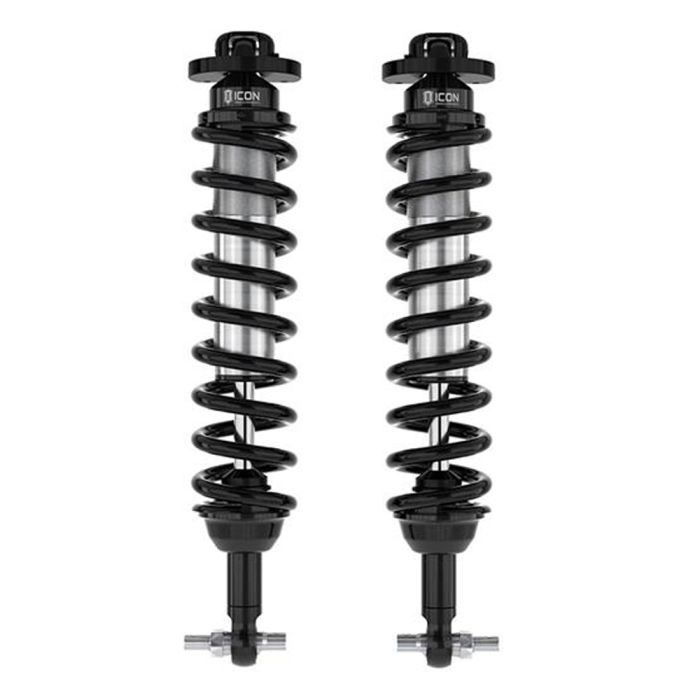

ICON Vehicle Dynamics V.S. 2.5 Series Coilover Kit Internal Reservoir Front Bronco 2021-2024

These V.S. 2.5 Series Front Coilover Shocks are specifically tuned to enhance your 2021-2024 Bronco's ride quality by increasing wheel travel up to 11-1/2 inches. Sasquatch models get 2 to 3 inches of front lift while non-Sasquatch models get 3 to 4 inches. This provides the opportunity for you to run larger, more aggressive tires!

Features and Benefits:
- Front-specific coilover shocks
- Increases wheel travel up to 11-1/2"
- Enhanced ride quality over stock
- Tuned for vehicle-specific shock damping and control
- Adjustable up to 3-4" front lift for non-Sasquatch models
- Adjustable up to 2-3" front lift for Sasquatch models
- ICON-engineered coil springs
- CNC-machined 6061 aircraft-grade aluminum shock parts
- CAD-plated 7/8" diameter shock bodies resist corrosion
- FK rod end bearings minimize deflection and extend lifespan
- Strong CNC-machined alloy lower bar pin
- Fully rebuildable and re-tunable design
- 100% bolt-on installation with no drilling, cutting, or welding
- Made in the USA

These shocks are made by ICON Vehicle Dynamics with large 2-1/2 inch shock bodies made from CNC-machined aluminum. Whether on or off the paved road, their larger piston area increases wheel travel and ride quality, especially when combined with the same coilovers in the rear. They're also CAD-plated for amazing resistance to rust and corrosion! These bolt-on coilover shocks (48600) are completely rebuildable and re-tunable.

Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (With Sasquatch Package): 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Factory UCAs will not align properly past 2-1/2" of lift. An aftermarket UCA is recommended for lift higher than this.
- When running 37" tires use Up Travel Limiters part #611075 in the front.
- Recommended Crash Bars part #42000 on non-Sasquatch equipped vehicles when running 35" tires.
- When running 37" tires crash bar removal may be required but is not recommended.
- Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and the installer must verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.
- Fitment testing is done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Bronco Everglades will have a lift height range of 1-1/2" to 2-1/2" over stock.

Vehicle Fitment:
- 2021-2024 Ford Bronco

*Not compatible with Bronco Raptor.
