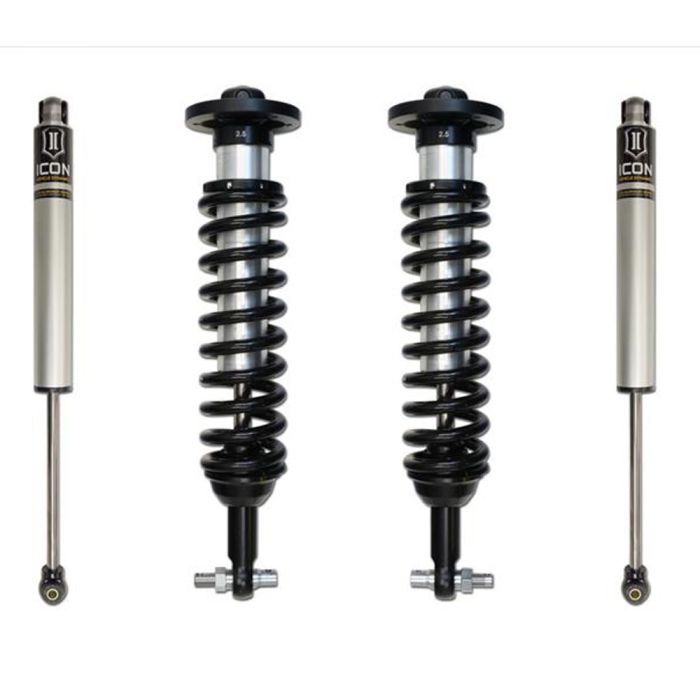

ICON Vehicle Dynamics Lift Stage 1 Suspension System 2WD F-150 2014

ICON Vehicle Dynamics’ Stage-1 Lift Suspension System enhances the offroad performance of your 2014 2WD F-150. The kit Increases your truck’s wheel travel and ride quality over stock, enabling you to mount larger tires. ICON’s lift system features in-house custom-tuned springs to dampen felt shock across your truck on rocky roads. An adjustable ride height lets you choose the lift that best suits you and your adventures. ICON designed the system to seamlessly bolt onto your F-150 without the need to break out the drill.

Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Unique valving developed for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable Coilovers from 0-2.63" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion-resistant CAD plated coilover shock body with 7/8 shaft
- High-strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear IFP shock with 5/8" polished shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA

Vehicle Fitment:
- 2014 F-150s
- Fits 2WD Models

Technical Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
