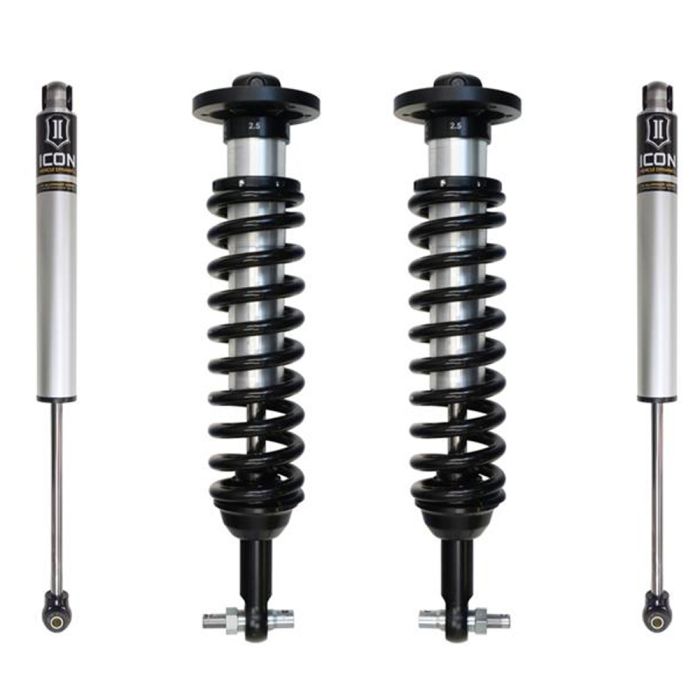

ICON Vehicle Dynamics Lift Stage 1 Suspension System F-150 2015-2020

ICON Vehicle Dynamics’ Stage 1 Lift Suspension System enhances the offroad performance of your 2015-2020 F-150. The kit is designed to Increase wheel travel and ride quality over stock with no change in towing capacity. The system utilizes custom-tuned springs on brand-new coilovers to dampen felt shock across your truck. You can also adjust the ride height of the suspension system, so you can choose the lift that best suits you. The system seamlessly bolts onto the original positions as the factory system, so no modifications to your truck are required. ICON Vehicle Dynamics manufactures their Lift Stage 1 Suspension System right here in the USA.

Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Unique valving developed for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from 0-2.63" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion-resistant CAD plated coilover shock body with 7/8 shaft
- High-strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear IFP shock with 5/8" polished shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA

Vehicle Fitment:
- Fits 2015-2020 F150
- Fits 4WD Models

Technical Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Only compatible with 4-wheel drive (4WD) models Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
- Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.13" over stock
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models
