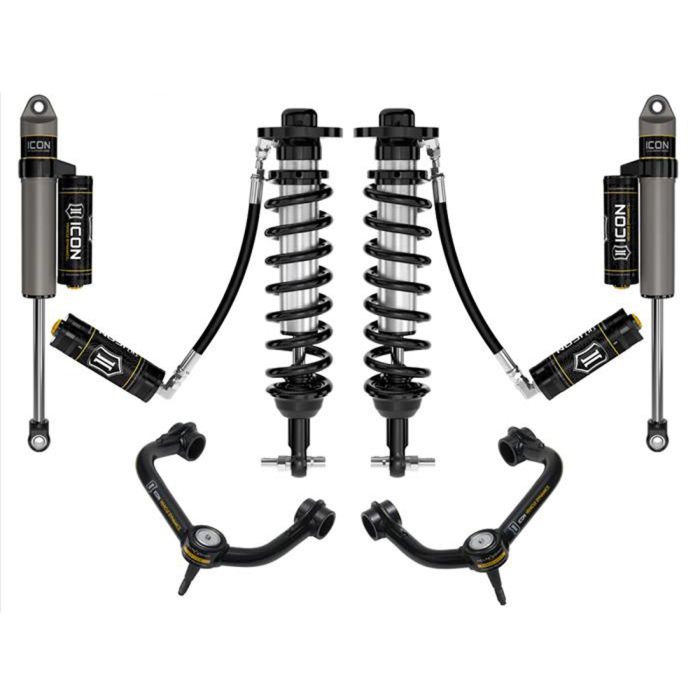

ICON Vehicle Dynamics Stage 4 Tubular Lift Suspension System 4WD F-150 2021-2023

The Tubular Lift Stage 4 Suspension System from ICON Vehicle Dynamics improves the ride quality for your 2021-2023 4WD F-150 without any modifications needed. The included shocks are specifically tuned specifically to your F-150’s design and provide excellent shock dampening. The included 2.5 aluminum series rear shocks feature hard anodized, one-piece aluminum cylinders for excellent corrosion resistance. The kit also utilizes Tubular Upper Control Arms for added strength, durability, and alignment spec range over the original system’s components.

Features and Benefits:
- Increased Wheel Travel and Ride Quality over Stock with No Change in Towing Capacity
- High Strength Alloy CNC Machined Lower Bar Pins
- FK Rod End Bearings for Extended Longevity and Minimal Deflection
- 2.5 Aluminum Series Rear Shocks Hard Anodized, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance and Consistent External Finish
- Bolt-on System - No Cutting or Welding Necessary for Install
- Vehicle Specific Tuned Front and Rear Shocks for Superior Damping and Vehicle Control
- Adjustable Coilovers from 0-2.75” of Lift Height
- Tubular Upper Control Arms for added strength, durability, and alignment spec range
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant Cad Plated Coilover Shock Bodies with 7/8” Shafts
- Made in the USA

Vehicle Fitment:
- 2021-2023 F-150
- 4WD models

Technical Information:
- OEM Wheels & Tires Fitment: Not Compatible with All Available OE Wheel/Tire Combinations. Aftermarket Wheels with Lower Offset/Less Backspace Recommended.
- Recommended Aftermarket Wheels: 17x8.5” W/ 5” Backspace / 6MM Offset
- Recommended Aftermarket Wheels: 18x9” W/ 5.25” Backspace / 6MM Offset
- Recommended Aftermarket Wheels: 20x9” W/ 5.625” Backspace / 16MM Offset
- Recommended Aftermarket Tires: 33” X 11.50” (Larger Tires May Fit but Fender Trimming and Modifications Will Be Required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are for a Stock Equipped Vehicle
- Will Not Work with Factory Installed Electronically Controlled Suspension
- Only Compatible with 4-Wheel Drive (4WD) Models
- Only Compatible with Oe Spindles. Do Not Install in Combination with Any Aftermarket Spindles.
- Not Compatible with F-150 Tremor or F-150 Raptor
- Not Compatible with Models Equipped with Onboard Scales
- Not Compatible with Models Equipped with Bluecruise
- Models Equipped with Powerboost Hybrid Engines Will Have Lift Height Range of 0-2.5” over Stock
- Models Equipped with Power-Stroke Diesel Engines Will Have Lift Height Range of 0-2.25” over Stock
- Included Rear Shocks Are Compatible with 0-1” of Rear Lift over Stock on Most Models
- Included Tubular Front Upper Control Arms Are Optimized for Front Lift Heights from 1.75-3” over Stock
