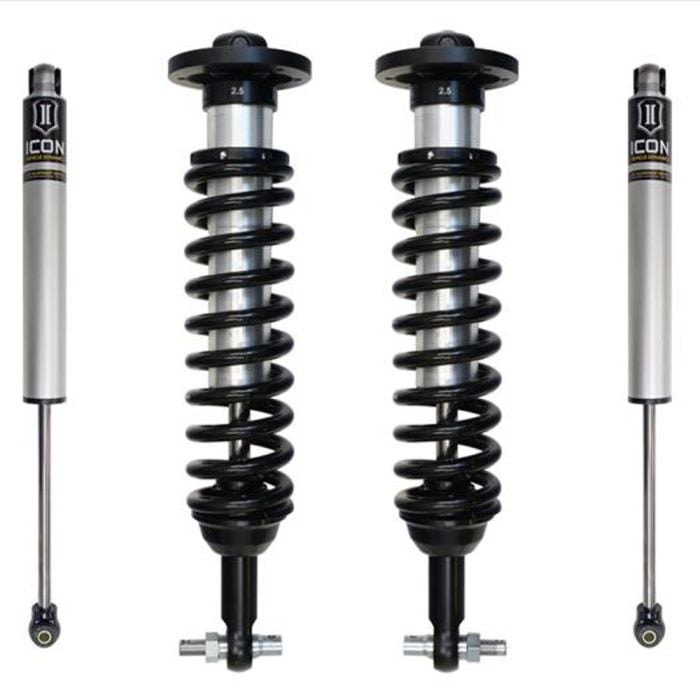

ICON Vehicle Dynamics Stage 1 Suspension System 2-Wheel Drive F-150 2021-2023

Custom-tuned and valved by ICON Vehicle Dynamics to 2021-2023 F-150s, the rear shocks in this Stage 1 Suspension System transport your ride quality to a new level. To enrichen your 2-wheel drive’s already fluid handling, this system uses monotube shocks part of the 2.0 Aluminum series. Internal reservoirs and induction-hardened, 5/8” shafts support the shocks, cooling them down through each bump they soften.

Features and Benefits:
- 2.0 Aluminum series, monotube rear shocks
- Shocks specially tuned & valved to 2021-2023 F-150
- Induction-hardened, 5/8” shafts & internals reservoirs in shocks
- Stellar damping & vehicle control on/off-road
- Boosts wheel travel, refines ride quality, & retains towing capacity
- Corrosion-resistant, CAD-plated, coilovers w/ 7/8” shaft
- Coilovers bear adjustable lift height of 0” to 3” over stock
- Components CNC-machined from 6061 aircraft-grade aluminum
- Lower bar pin built from high-strength, CNC-machined alloy
- FK rod end bearings boost longevity & minimize deflection
- 100% bolt-on installation w/o cutting/welding

Drivers can lift the vehicle 0” to 3” over stock using the supplied coilovers, CAD-plated for protection against corrosion. Minus the high-strength alloy of the lower bar pin, each component in the system is CNC-machined from aircraft-grade aluminum. It ensures the perfect mix of sturdiness and lightweight to withstand street and off-road treks. When united, they polish vehicle control and extend wheel travel all without hampering towing capacity.

Vehicle Fitment:
- 2021-2023 Ford F-150
- For 2-wheel drive applications ONLY
*NOT compatible with F-150s equipped with BlueCruise
*Does NOT work with factory-installed, electronically controlled suspension

Additional Notes:
- OEM wheels & tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50"
- Larger tires may fit but fender trimming and modifications will be required.
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Lift heights 2” above stock may require aftermarket front upper control arms to maintain proper alignment.
- For models with a PowerBoost hybrid engine, the lift height range will be 0” to 2-3/4” over stock.
- For models with a Power-Stroke diesel engine, the lift height range will be 0” to 2-1/2” over stock.
- Included rear shocks are compatible with 0” to 1" of rear lift over stock on most models.
